1. Align the IO9 board with PCI slot 1 on Bus 1. Then lower the IO9 board into the
enclosure. Press straight down to seat the board in the PCI connector on the
interface board (see Figure 3-19).
R
R

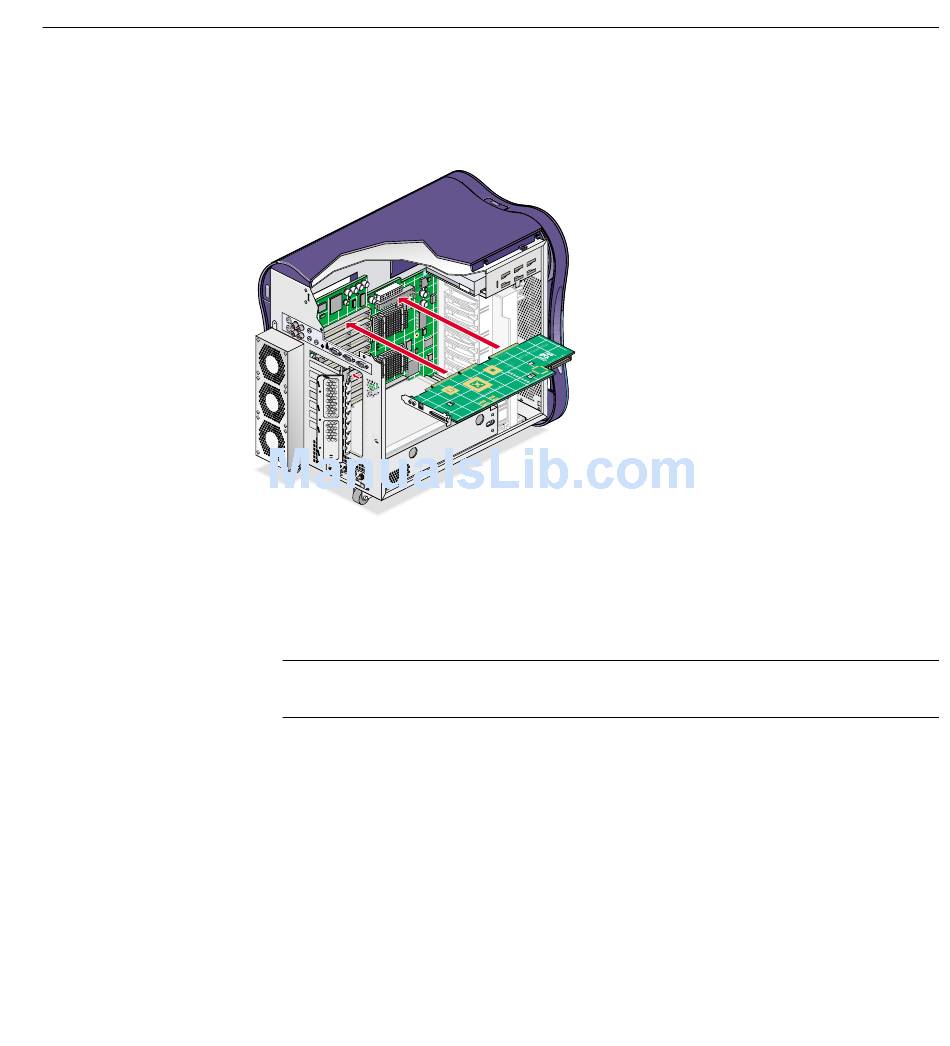

Figure 3-19 Installing the IO9 Board
2. Connect the SCSI and IDE cables to the IO9 board. To connect a cable, align the cable
connector with the socket on the IO9 board and press down. Then attach the
retention strap to the IO9 board (see Figure 3-20).
Note: The connectors and sockets are keyed. Ensure that you have properly aligned
the connect and socket before you attempt to connect them.
