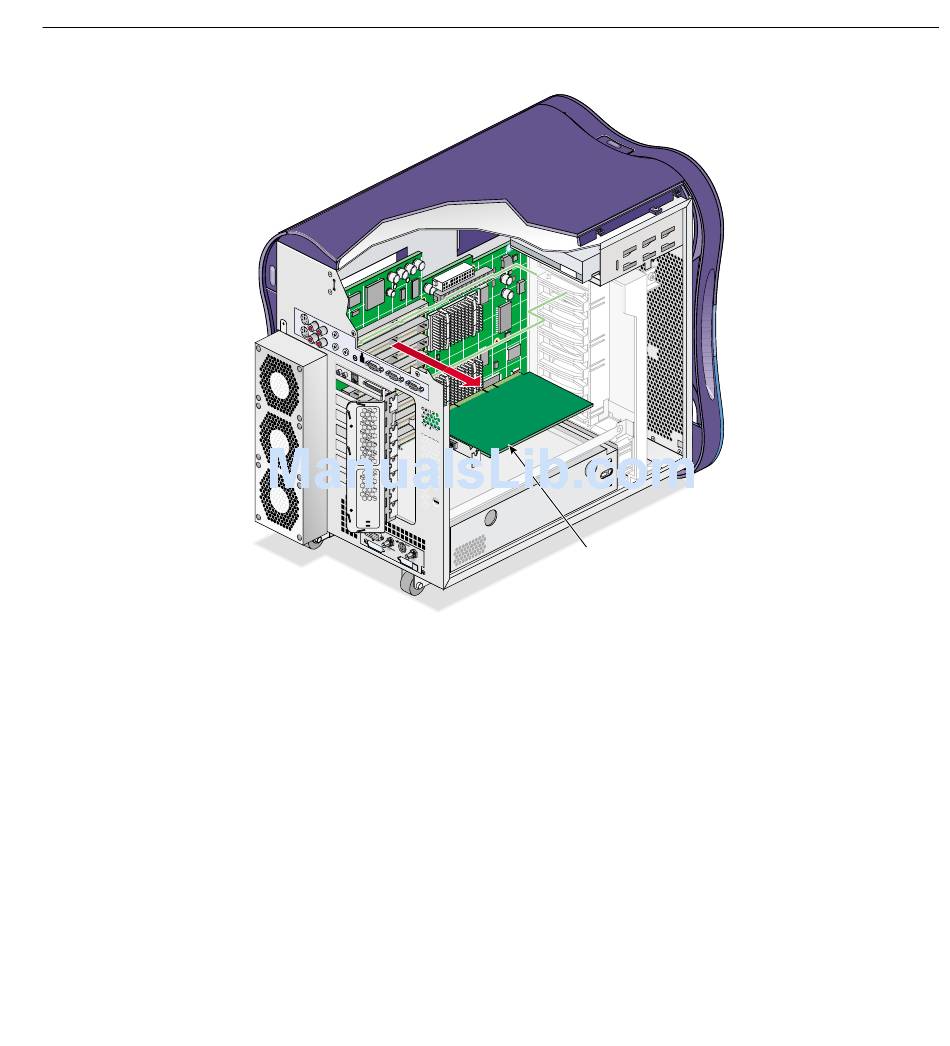

Figure 3-32 Removing a PCI Board
4. If you will be replacing the PCI board, see "Installing a PCI Board" on page 89.
5. If you are finished removing PCI boards, close the PCI gate. Then install the three
screw that secure the gate to the enclosure.
This completes the PCI board removal. To return the workstation to service, refer to
"Returning the Workstation to Service" on page 57.
Refer to the documentation that came with the device for more information on
connecting it to your workstation.
