2: System Overview

Power Supply

Cooling System

40

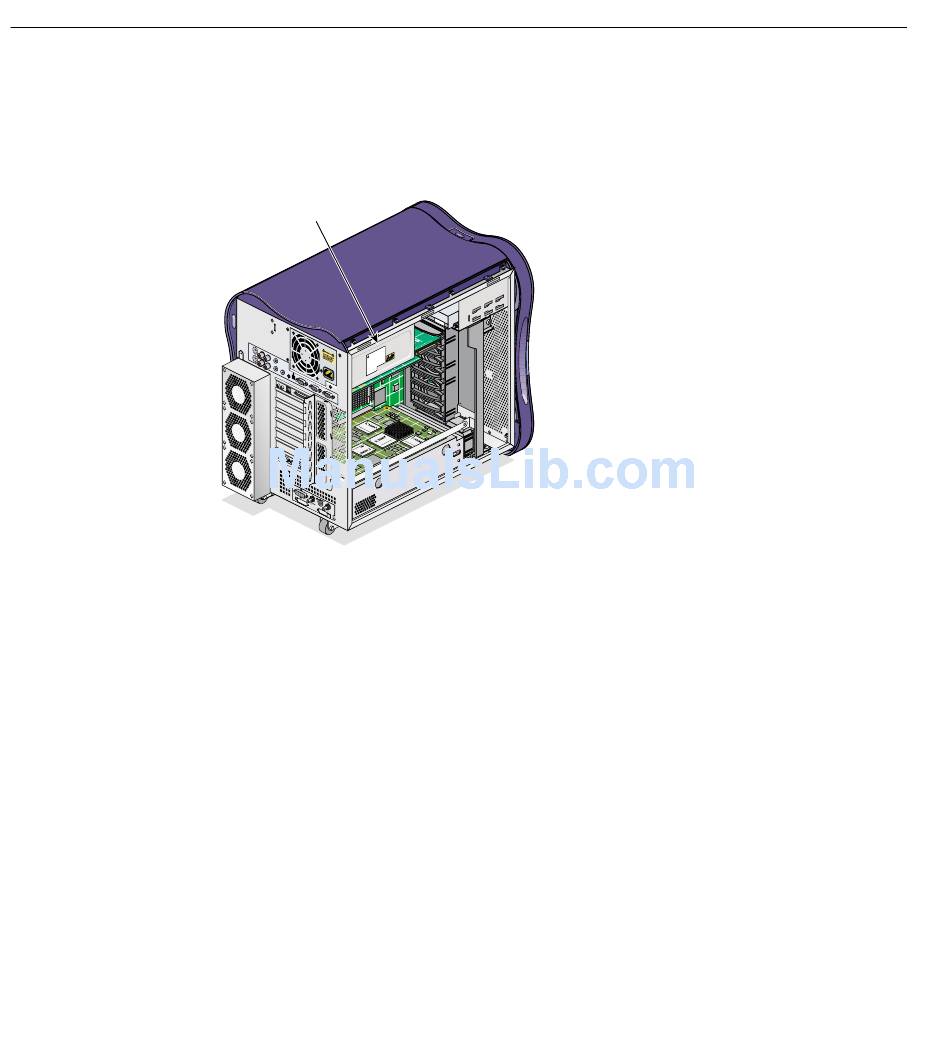

The power supply for the workstation is located in the top rear quadrant of the chassis,
as shown in Figure 2-13.
Power supply
R
R
Power Supply Location
Figure 2-13
The power supply provides up to 550 watts of power to the node and interface boards,
internal hard disk drives, DVD-ROM drive, and other optional components installed in
the enclosure. For detailed information about the power supply specifications, refer to
Appendix A, "Technical Specifications and Pinouts".
The workstation uses a total of eight fans to cool the internal components. The following
components make up the cooling system (see Figure 2-14):
• Fan Wall
The fan wall is a plastic housing that contains two 60-mm (2.4-in.) fans and two
80-mm (3.1-in.) fans. These fans provide cooling for the interface board, PCI boards,
and the graphics module.
007-4564-001
