007-4564-001
• Disk Drive Fan
The disk drive fan is an 80-mm fan that mounts directly behind the disk drives.
• Rear Fan Assembly
The rear fan assembly is made up of a sheet metal enclosure and three 80-mm fans.
These fans provide cooling for the system node board and memory DIMMs. The
rear fan assembly is mounted to the rear of the enclosure with hooks and a screw.
Note: The power supply is cooled by its own internal fan.
Fan wall

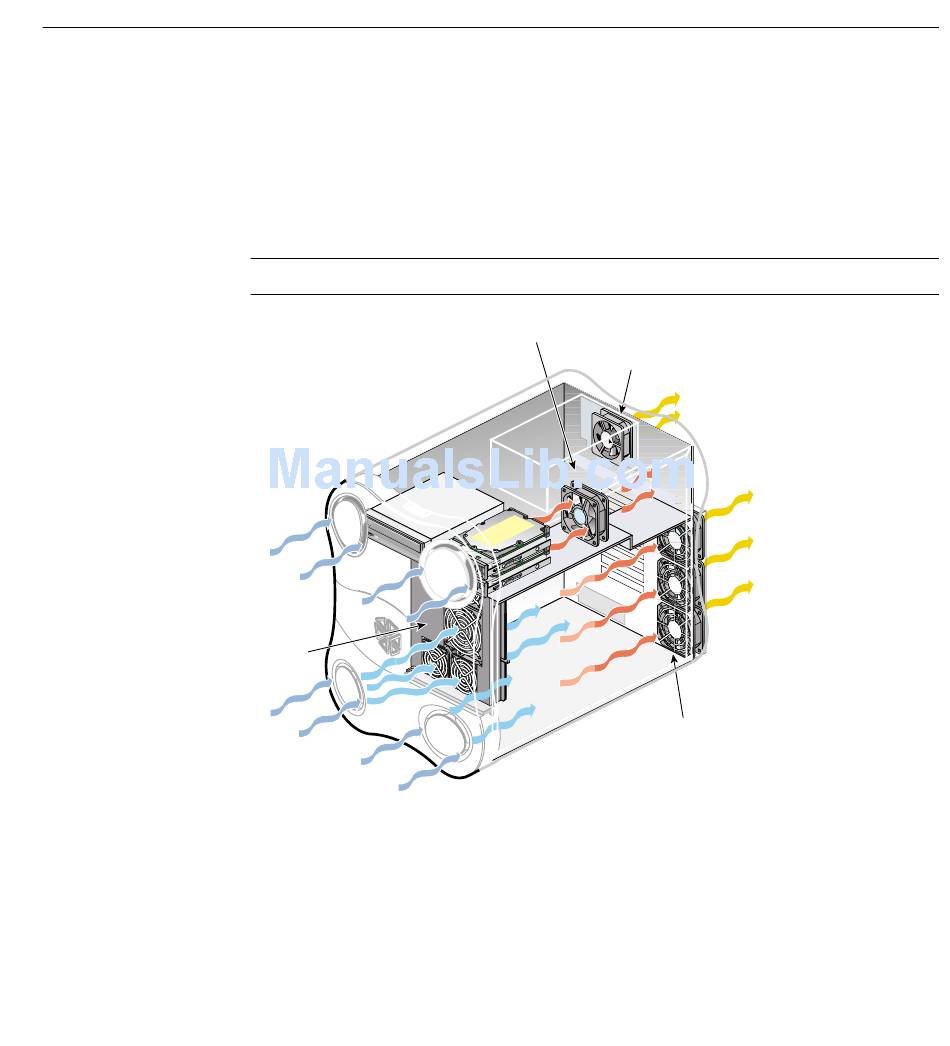

Figure 2-14 Cooling System Components
Disk drive fan
Power supply fan
Rear fan assembly
Cooling System
41
