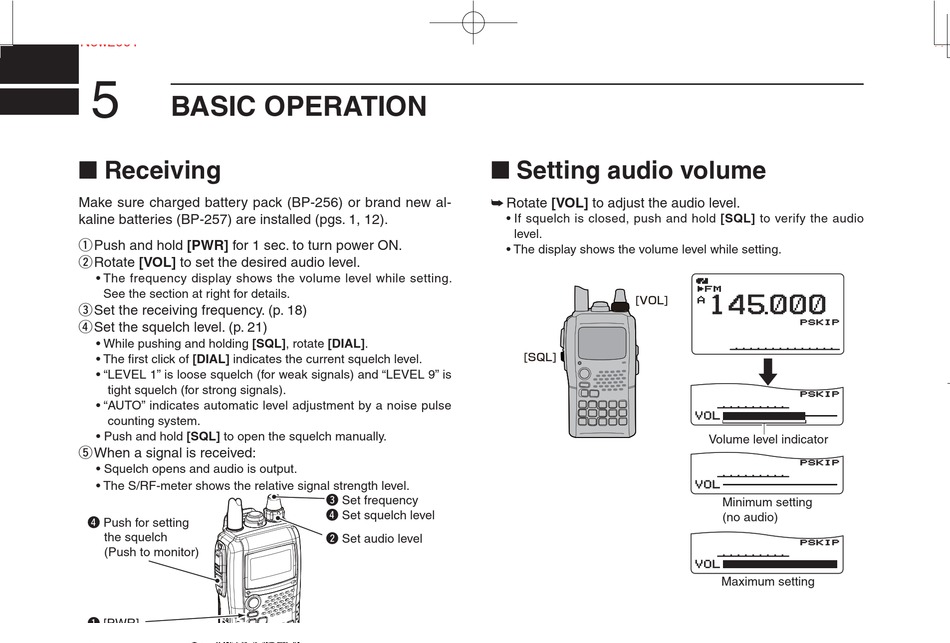

BASIC OPERATION

■ Receiving

Make sure charged battery pack (BP-256) or brand new al-
kaline batteries (BP-257) are installed (pgs. 1, 12).
q Push and hold [PWR] for 1 sec. to turn power ON.
w Rotate [VOL] to set the desired audio level.
• The frequency display shows the volume level while setting.
See the section at right for details.
e Set the receiving frequency. (p. 18)
r Set the squelch level. (p. 21)
• While pushing and holding [SQL], rotate [DIAL].
• The fi rst click of [DIAL] indicates the current squelch level.
• " LEVEL 1" is loose squelch (for weak signals) and "LEVEL 9" is
tight squelch (for strong signals).
• " AUTO" indicates automatic level adjustment by a noise pulse
counting system.
• Push and hold [SQL] to open the squelch manually.
t When a signal is received:
• Squelch opens and audio is output.
• The S/RF-meter shows the relative signal strength level.
r Push for setting
the squelch
(Push to monitor)
q [PWR]
e Select band
20

■ Setting audio volume

➥ Rotate [VOL] to adjust the audio level.
e Set frequency
r Set squelch level
w Set audio level
• If squelch is closed, push and hold [SQL] to verify the audio
level.
• The display shows the volume level while setting.
+DUP +DUP DTCS DTCS
FM PRIO PRIO WX EMR EMR
14 145 000
25 25
A
MemoName MemoName
PSKIP
μ 000 000
LOW LOW
ATT ATT
PSKIP
μ 000 000
VOL VOL
Volume level indicator
PSKIP
μ 000 000
VOL VOL
Minimum setting
(no audio)
PSKIP
μ 000 000
VOL VOL
Maximum setting
