Band Scope - Icom IC-92A Instruction Manual

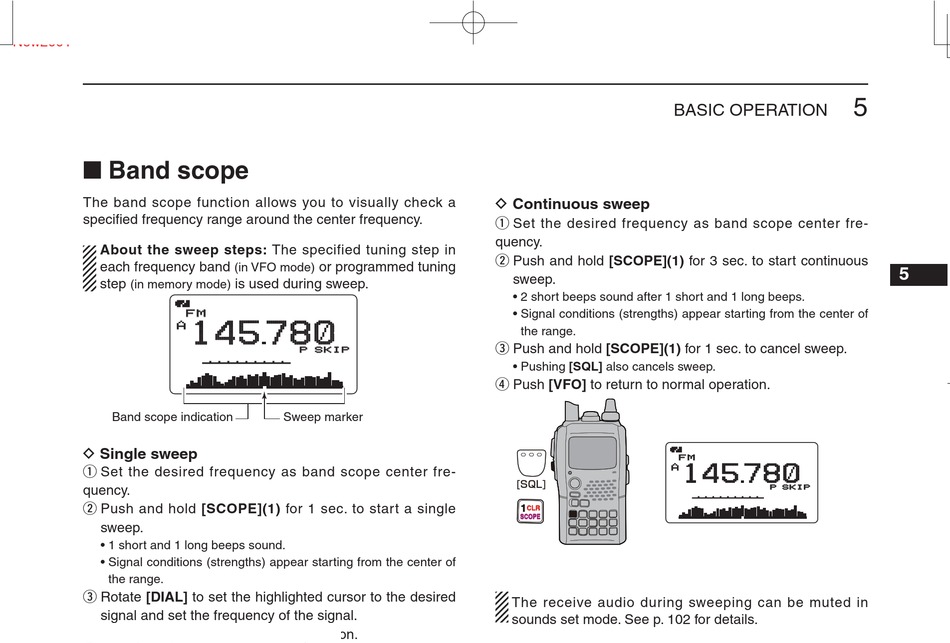

■ Band scope

The band scope function allows you to visually check a
specifi ed frequency range around the center frequency.
About the sweep steps: The specified tuning step in
each frequency band
(in VFO mode)
step is used during sweep.
(in memory mode)
+DUP +DUP DTCS DTCS
FM FM PRIO WX EMR PRIO
145 780
A
B
Band scope indication
D Single sweep
q Set the desired frequency as band scope center fre-
quency.
w Push and hold [SCOPE](1) for 1 sec. to start a single
sweep.
• 1 short and 1 long beeps sound.
• Signal conditions (strengths) appear starting from the center of
the range.
e Rotate [DIAL] to set the highlighted cursor to the desired
signal and set the frequency of the signal.
r Push [VFO] to return to normal operation.
or programmed tuning
EMR
25
P SKIP P SKIP
μ 000 000
Sweep marker
BASIC OPERATION
D Continuous sweep
q Set the desired frequency as band scope center fre-
quency.
w Push and hold [SCOPE](1) for 3 sec. to start continuous
sweep.
• 2 short beeps sound after 1 short and 1 long beeps.
• Signal conditions (strengths) appear starting from the center of
the range.
e Push and hold [SCOPE](1) for 1 sec. to cancel sweep.
• Pushing [SQL] also cancels sweep.
r Push [VFO] to return to normal operation.
A
B
1
CLR
SCOPE
The receive audio during sweeping can be muted in
sounds set mode. See p. 102 for details.
