3
BATTERY CHARGING

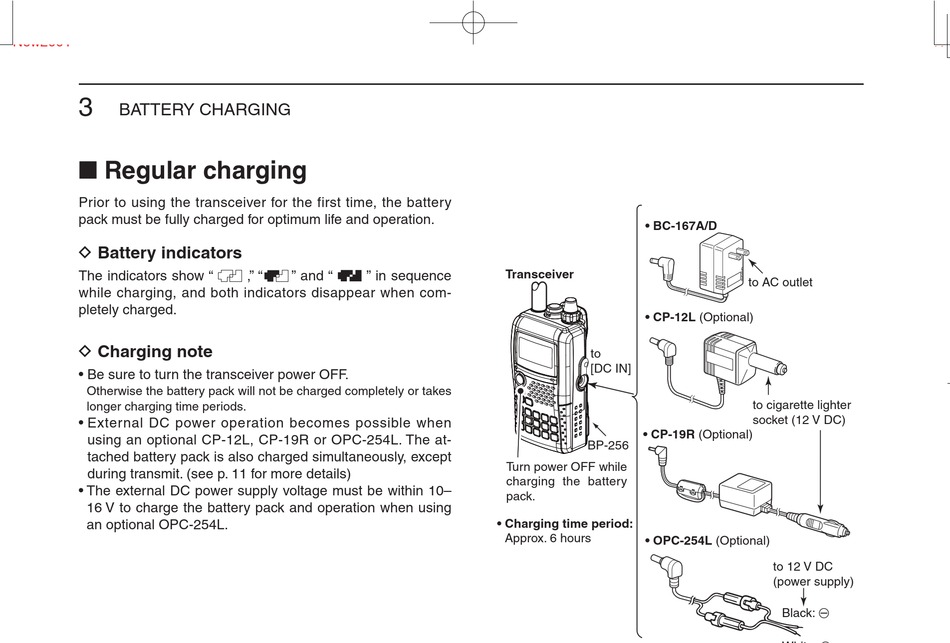

■ Regular charging

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
D Battery indicators
The indicators show "
while charging, and both indicators disappear when com-
pletely charged.
D Charging note
• Be sure to turn the transceiver power OFF.
Otherwise the battery pack will not be charged completely or takes
longer charging time periods.
• External DC power operation becomes possible when
using an optional CP-12L, CP-19R or OPC-254L. The at-
tached battery pack is also charged simultaneously, except
during transmit. (see p. 11 for more details)
• The external DC power supply voltage must be within 10–
16 V to charge the battery pack and operation when using
an optional OPC-254L.
10
," " " and " " in sequence
• BC-167A/D
Transceiver
• CP-12L (Optional)
to
[DC IN]
• CP-19R (Optional)
BP-256
Turn power OFF while
charging the battery
pack.
• Charging time period:
Approx. 6 hours
• OPC-254L (Optional)
to AC outlet
to cigarette lighter
socket (12 V DC)
to 12 V DC
(power supply)
Black: _
White: +
