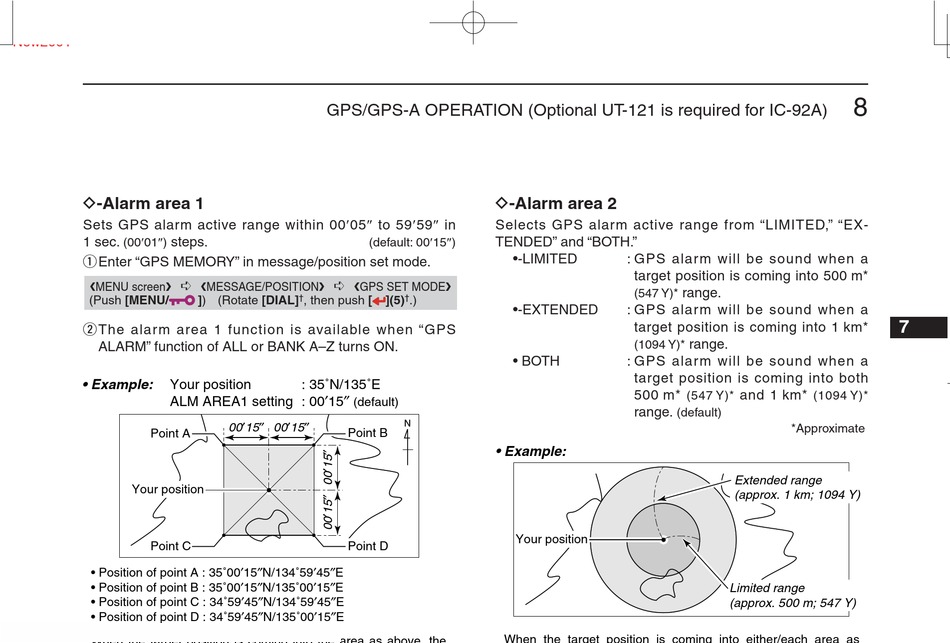

D-Alarm area 1
Sets GPS alarm active range within 00c05s to 59c59s in
1 sec. steps.
(00c01s)
q Enter "GPS MEMORY" in message/position set mode.
➪
❮MENU screen❯ ❮MESSAGE/POSITION❯
(Push [MENU/ ]) (Rotate [DIAL]
w The alarm area 1 function is available when "GPS
ALARM" function of ALL or BANK A–Z turns ON.
• Example: Your position
ALM AREA1 setting : 00'15"
00 ' 15 " 00 ' 15 "
Point A
Your position
Point C
• Position of point A : 35˚00'15"N/134˚59'45"E
• Position of point B : 35˚00'15"N/135˚00'15"E
• Position of point C : 34˚59'45"N/134˚59'45"E
• Position of point D : 34˚59'45"N/135˚00'15"E
When the target position is coming into the area as above, the
GPS alarm will be sound.
GPS/GPS-A OPERATION (Optional UT-121 is required for IC-92A)
(default: 00c15s)
➪
❮GPS SET MODE❯
† †
, then push [ ](5) .)
: 35˚N/135˚E
(default)
N
Point B
Point D
D-Alarm area 2
Selects GPS alarm active range from "LIMITED," "EX-
TENDED" and "BOTH."
•-LIMITED : GPS alarm will be sound when a
target position is coming into 500 m*
(547 Y)*
•-EXTENDED : GPS alarm will be sound when a
target position is coming into 1 km*
(1094 Y)*
• BOTH : GPS alarm will be sound when a
target position is coming into both
500 m*
range.
• Example:
Your position
When the target position is coming into either/each area as
above, the GPS alarm will be sound.
8
range.
range.
and 1 km*
(547 Y)* (1094 Y)*
(default)
*Approximate
Extended range
(approx. 1 km; 1094 Y)
Limited range
(approx. 500 m; 547 Y)
