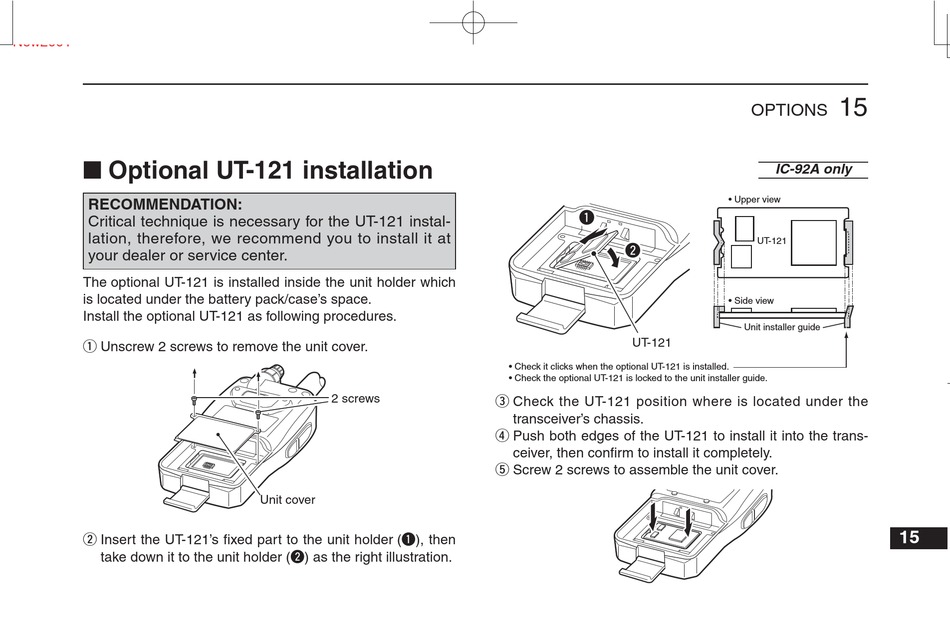

■ Optional UT-121 installation

RECOMMENDATION:
Critical technique is necessary for the UT-121 instal-
lation, therefore, we recommend you to install it at
your dealer or service center.
The optional UT-121 is installed inside the unit holder which
is located under the battery pack/case's space.
Install the optional UT-121 as following procedures.
q Unscrew 2 screws to remove the unit cover.
Unit cover
w Insert the UT-121's fi xed part to the unit holder (q), then
take down it to the unit holder (w) as the right illustration.
• Check it clicks when the optional UT-121 is installed.
• Check the optional UT-121 is locked to the unit installer guide.
e Check the UT-121 position where is located under the
2 screws
r Push both edges of the UT-121 to install it into the trans-
t Screw 2 screws to assemble the unit cover.
q
w
UT-121
transceiver's chassis.
ceiver, then confi rm to install it completely.
15
OPTIONS
1
IC-92A only
2
• Upper view
3
UT-121
4
5
6
• Side view
7
Unit installer guide
8
9
10
11
12
13
14
15
16
17
18
19
