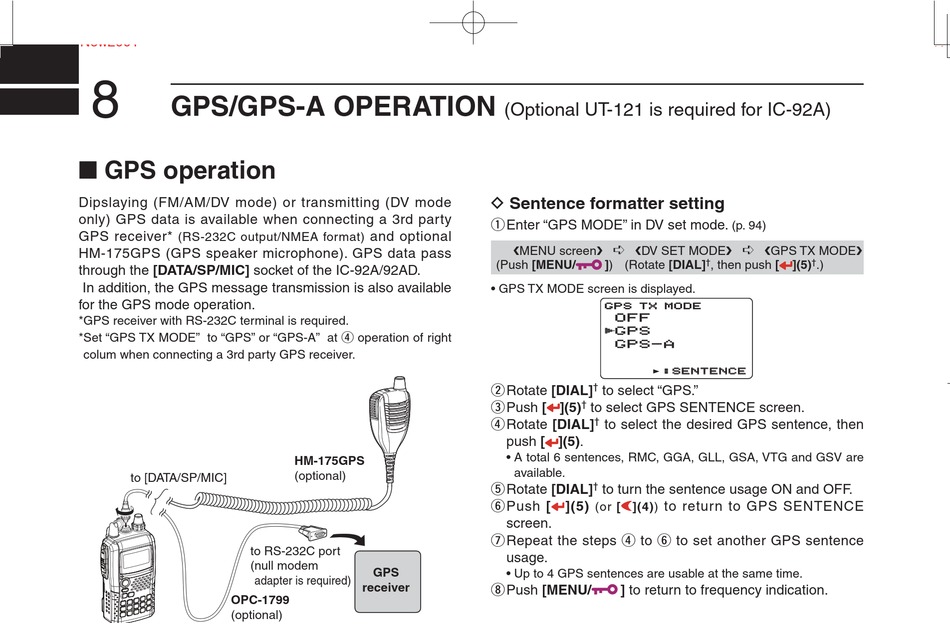

GPS/GPS-A OPERATION

■ GPS operation

Dipslaying (FM/AM/DV mode) or transmitting (DV mode
only) GPS data is available when connecting a 3rd party
GPS receiver*
(RS-232C output/NMEA format)
HM-175GPS (GPS speaker microphone). GPS data pass
through the [DATA/SP/MIC] socket of the IC-92A/92AD.
In addition, the GPS message transmission is also available
for the GPS mode operation.
*GPS receiver with RS-232C terminal is required.
* Set "GPS TX MODE" to "GPS" or "GPS-A" at r operation of right
colum when connecting a 3rd party GPS receiver.
to [DATA/SP/MIC]
58
and optional
HM-175GPS
(optional)
to RS-232C port
(null modem
GPS
adapter is required)
receiver
OPC-1799
(optional)
(Optional UT-121 is required for IC-92A)
D Sentence formatter setting
q Enter "GPS MODE" in DV set mode.
➪
❮MENU screen❯ ❮DV SET MODE❯
(Push [MENU/ ]) (Rotate [DIAL]
• GPS TX MODE screen is displayed.
GPS TX MODE
OFF
GPS
r
GPS-A GPS-A
:SENTENCE :SENTENCE
w Rotate [DIAL]
†
to select "GPS."
e Push [ ](5)
†
to select GPS SENTENCE screen.
r Rotate [DIAL]
†
to select the desired GPS sentence, then
push [ ](5).
• A total 6 sentences, RMC, GGA, GLL, GSA, VTG and GSV are
available.
t Rotate [DIAL]
†
to turn the sentence usage ON and OFF.
y Push [
](5) to return to GPS SENTENCE
(or [ ](4))
screen.
u Repeat the steps r to y to set another GPS sentence
usage.
• Up to 4 GPS sentences are usable at the same time.
i Push [MENU/
] to return to frequency indication.
(p. 94)
➪
❮GPS TX MODE❯
† †
, then push [ ](5) .)
