Panel Description; Front, Top And Side Panels - Icom IC-92A Instruction Manual

2

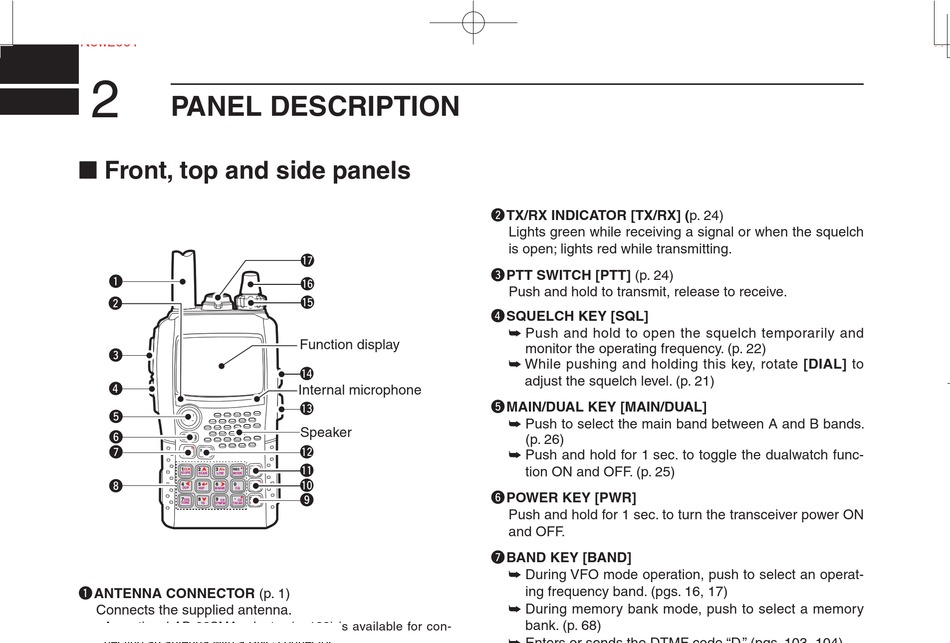

PANEL DESCRIPTION

■ Front, top and side panels

q
w
e
r
t
MAIN
DUAL
y
PWR
u
D
MENU
BAND
1
CLR 2
SCOPE SCAN
i
4 5
DUP SKIP M.NAME
7 8
DSQ
TONE TS
q ANTENNA CONNECTOR (p. 1)
Connects the supplied antenna.
• An optional AD-92SMA adapter (p. 122) is available for con-
necting an antenna with a BNC connector.
2
!7
!6
!5
Function display
!4
Internal microphone
!3
Speaker
!2
!1
A
3 A/a REC VFO
LOW MODE MHz
!0
B
6 0
MR
CQ S.MW
o
. C
9 # CALL
CS CD
DTMF.M T.SCAN RX CS
w TX/RX INDICATOR [TX/RX] (p. 24)
Lights green while receiving a signal or when the squelch
is open; lights red while transmitting.
e PTT SWITCH [PTT] (p. 24)
Push and hold to transmit, release to receive.
r SQUELCH KEY [SQL]
➥ Push and hold to open the squelch temporarily and
monitor the operating frequency. (p. 22)
➥ While pushing and holding this key, rotate [DIAL] to
adjust the squelch level. (p. 21)
t MAIN/DUAL KEY [MAIN/DUAL]
➥ Push to select the main band between A and B bands.
(p. 26)
➥ Push and hold for 1 sec. to toggle the dualwatch func-
tion ON and OFF. (p. 25)
y POWER KEY [PWR]
Push and hold for 1 sec. to turn the transceiver power ON
and OFF.
u BAND KEY [BAND]
➥ During VFO mode operation, push to select an operat-
ing frequency band. (pgs. 16, 17)
➥ During memory bank mode, push to select a memory
bank. (p. 68)
➥ Enters or sends the DTMF code "D." (pgs. 103, 104)
