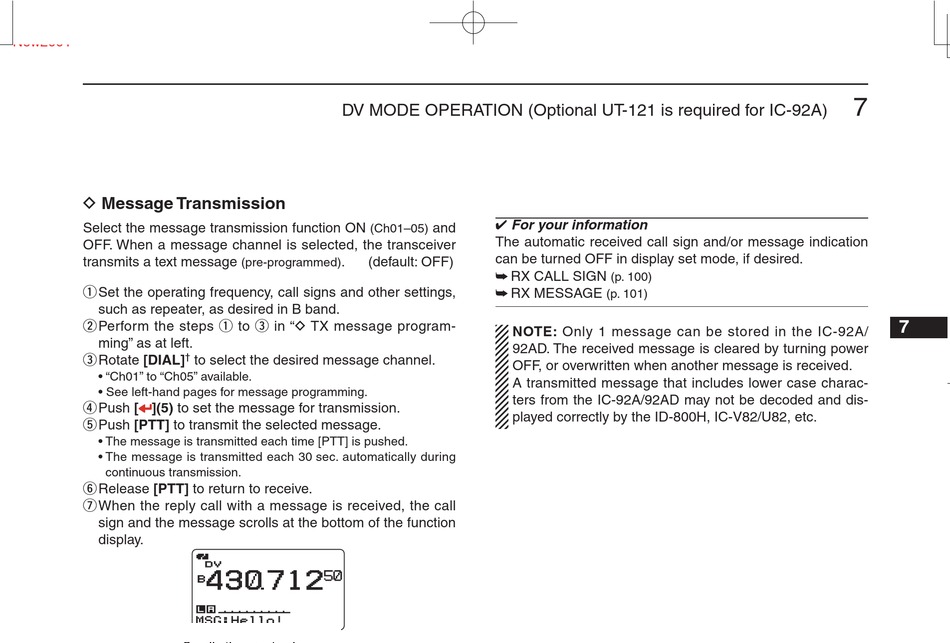

D Message Transmission
Select the message transmission function ON
OFF. When a message channel is selected, the transceiver
transmits a text message
(pre-programmed)
q Set the operating frequency, call signs and other settings,
such as repeater, as desired in B band.
w Perform the steps q to e in "D TX message program-
ming" as at left.
e Rotate [DIAL]
†
to select the desired message channel.
• "Ch01" to "Ch05" available.
• See left-hand pages for message programming.
r Push [ ](5) to set the message for transmission.
t Push [PTT] to transmit the selected message.
• The message is transmitted each time [PTT] is pushed.
• The message is transmitted each 30 sec. automatically during
continuous transmission.
y Release [PTT] to return to receive.
u When the reply call with a message is received, the call
sign and the message scrolls at the bottom of the function
display.
DV DV
430 712
B
MSG:Hello! MSG:Hello!
Scrolls the received message.
DV MODE OPERATION (Optional UT-121 is required for IC-92A)
✔ For your information
and
(Ch01–05)
The automatic received call sign and/or message indication
can be turned OFF in display set mode, if desired.
. (default: OFF)
➥ RX CALL SIGN
➥ RX MESSAGE
50
[DIAL] ↔ [ ](2)/[ ](8)
†
(p. 100)
(p. 101)
NOTE: Only 1 message can be stored in the IC-92A/
92AD. The received message is cleared by turning power
OFF, or overwritten when another message is received.
A transmitted message that includes lower case charac-
ters from the IC-92A/92AD may not be decoded and dis-
played correctly by the ID-800H, IC-V82/U82, etc.
