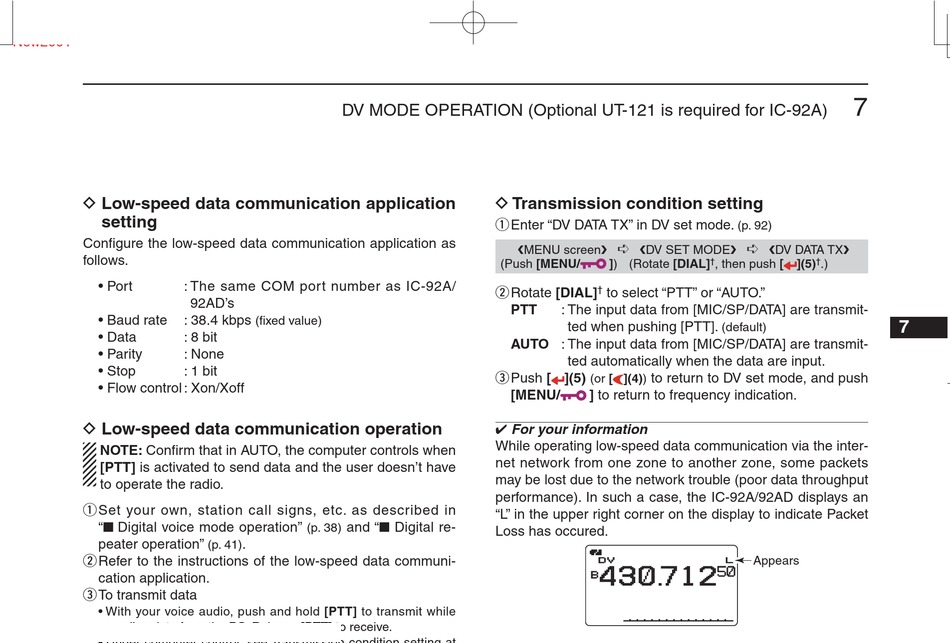

D Low-speed data communication application
setting
Confi gure the low-speed data communication application as
follows.
• Port : The same COM port number as IC-92A/
92AD's
• Baud rate : 38.4 kbps
(fi xed value)
• Data : 8 bit
• Parity : None
• Stop : 1 bit
• Flow control : Xon/Xoff
D Low-speed data communication operation
NOTE: Confi rm that in AUTO, the computer controls when
[PTT] is activated to send data and the user doesn't have
to operate the radio.
q Set your own, station call signs, etc. as described in
"■ Digital voice mode operation"
peater operation" .
(p. 41)
w Refer to the instructions of the low-speed data communi-
cation application.
e To transmit data
• With your voice audio, push and hold [PTT] to transmit while
sending data from the PC. Release [PTT] to receive.
• Under computer control, see Transmission condition setting at
right.
DV MODE OPERATION (Optional UT-121 is required for IC-92A)
and "■ Digital re-
(p. 38)
D Transmission condition setting
q Enter "DV DATA TX" in DV set mode.
➪
❮MENU screen❯ ❮DV SET MODE❯
(Push [MENU/ ]) (Rotate [DIAL]
w Rotate [DIAL]
†
to select "PTT" or "AUTO."
PTT : The input data from [MIC/SP/DATA] are transmit-
ted when pushing [PTT].
AUTO : The input data from [MIC/SP/DATA] are transmit-
ted automatically when the data are input.
e Push [ ](5)
to return to DV set mode, and push
(or [ ](4))
[MENU/ ] to return to frequency indication.
✔ For your information
While operating low-speed data communication via the inter-
net network from one zone to another zone, some packets
may be lost due to the network trouble (poor data throughput
performance). In such a case, the IC-92A/92AD displays an
"L" in the upper right corner on the display to indicate Packet
Loss has occured.
DV DV
430 712
B
[DIAL] ↔ [ ](2)/[ ](8)
†
7
(p. 92)
➪
❮DV DATA TX❯
† †
, then push [ ](5) .)
(default)
Appears
L
