12
OTHER FUNCTIONS

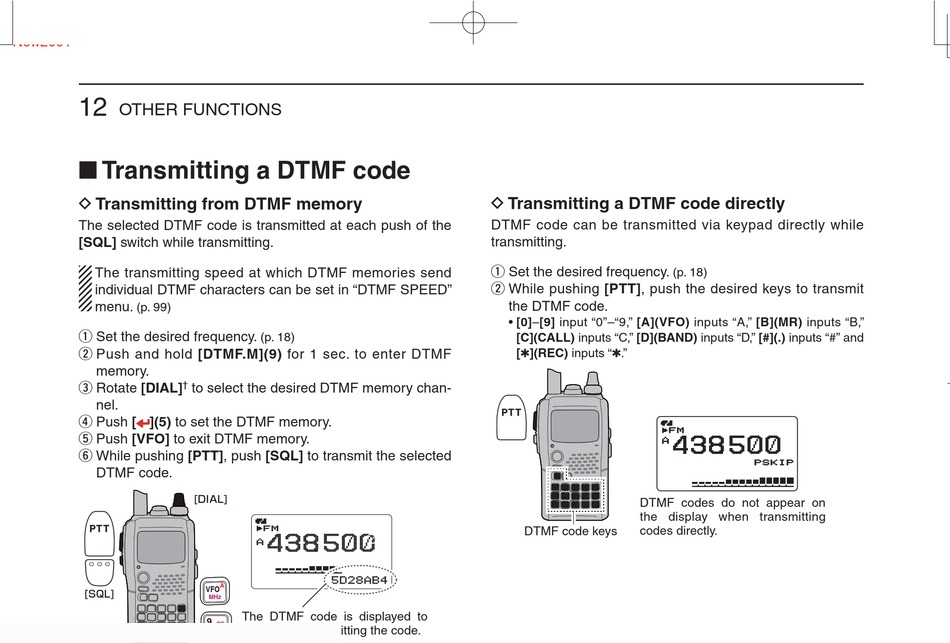

■ Transmitting a DTMF code

D Transmitting from DTMF memory
The selected DTMF code is transmitted at each push of the
[SQL] switch while transmitting.
The transmitting speed at which DTMF memories send
individual DTMF characters can be set in "DTMF SPEED"
menu.
(p. 99)
q Set the desired frequency.
w Push and hold [DTMF.M](9) for 1 sec. to enter DTMF
memory.
e Rotate [DIAL]
†
to select the desired DTMF memory chan-
nel.
r Push [ ](5) to set the DTMF memory.
t Push [VFO] to exit DTMF memory.
y While pushing [PTT], push [SQL] to transmit the selected
DTMF code.
118
(p. 18)
+DUP +DUP DTCS DTCS
FM PRIO PRIO WX EMR EMR
438 500
25 25
A
MemoName MemoName
PSKIP PSKIP
μ 000 000
5D28AB4 5D28AB4
A
VFO
MHz
The DTMF code is displayed to
9
CS
here when transmitting the code.
DTMF.M
D Transmitting a DTMF code directly
DTMF code can be transmitted via keypad directly while
transmitting.
q Set the desired frequency.
w While pushing [PTT], push the desired keys to transmit
the DTMF code.
• [0]–[9] input "0"–"9," [A](VFO) inputs "A," [B](MR) inputs "B,"
[C](CALL) inputs "C," [D](BAND) inputs "D," [#](.) inputs "#" and
[✱](REC) inputs "✱."
FM FM
A
DTMF codes do not appear on
the display when transmitting
codes directly.
DTMF code keys
+DUP DTCS
FM PRIO WX EMR
438 500
25
A
MemoName
PSKIP
μ 000
5D28AB4
(p. 18)
438 500
PSKIP PSKI
