OMR Setup

OMR Setup

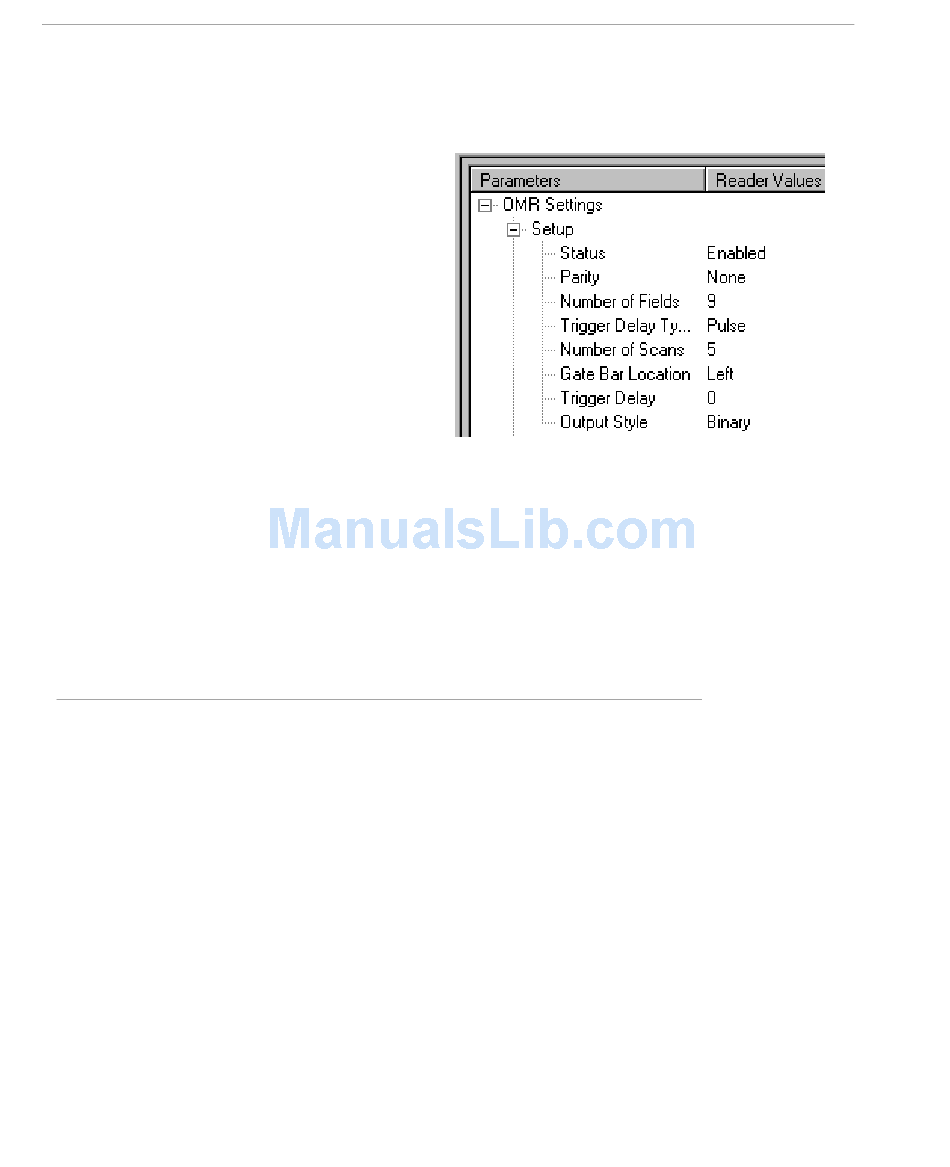

To setup the scanner for OMR testing,
do the following:
1. Use a master OMR symbol with no
gaps and all bars equally spaced.
1. In the OMR Settings, enable
OMR Status.
2. Set as desired.
Parity
3. Enter the number of fields (bars
or cells) in the symbol, in this
example, 9.
4. Enter the number of scans in the
read cycle. Five (5) is recom-
mended. Too high a number may
result in incomplete scans,
depending on symbol speed.
5. Select
Gate Bar
To save settings:
1. Right-click anywhere in the OMR Settings window.
2. Choose
Send, No Save
See individual command definitions for more information.
OMR Status
When you click Enable, OMR Calibration menu, OMR is enabled and all
Definition:
other codes are disabled.
<K490,status,parity status,# fields,trigger delay mode,# scans,gate
Serial Cmd:
bar location,trigger delay type,output style>
Default: Disabled
MS-9 Scanner User's Manual
7-6
location.
or
Send and Save.
