Chapter 7 OMR
OMR Setup & Calibration Menu

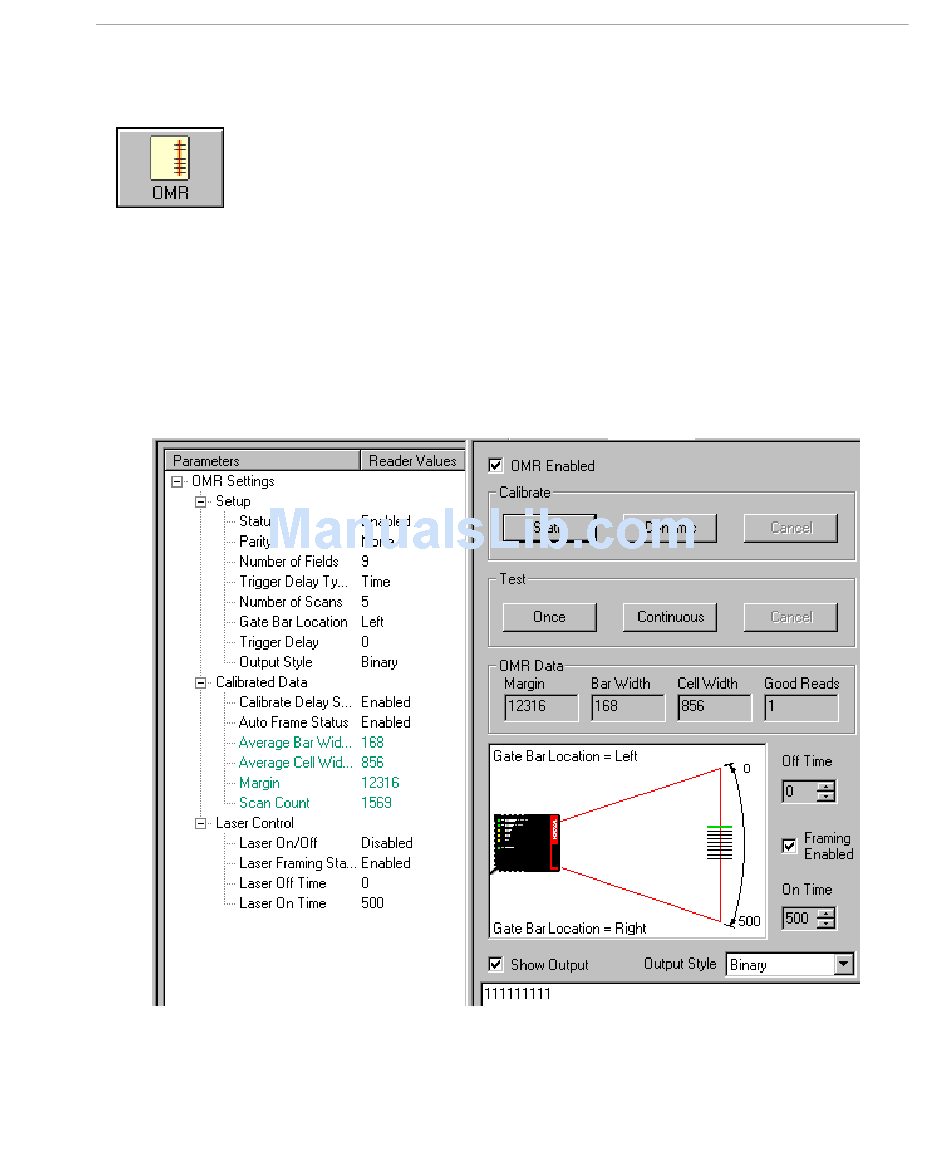

When you click on button you will see a menu similar to that below. Setup, Cali-
OMR
bration Data, and Laser Control commands can be modified in the menu tree on the
left. On the right side of the menu box, you can test for Static or Dynamic setups and
see OMR Data displayed in four text blocks. When you do a test, a representation of
the symbol is displayed in front of a scanner with laser Off Time and laser On Time
settings that allow you to manually center scans over a smaller area to reduce the pos-
sibility of miscellaneous "noise."
The OMR menu shown here is an example of what you might see during an actual cali-
bration with OMR, Framing, and Show Output enabled:
MS-9 Scanner User's Manual
7-5
