Electrical:
Voltage Input: Regulated +10 to 28 VDC
Cabling:
RS-232 Cable: 61-300026-03
Multidrop Cable: 61-100030-03
Daisy Chain Cable: 61-100029-03
Mechanical:
Length: 3.2 in. (8.13 cm)
Width: 3.15 in. (8 cm)
Height: 0.75 in. (1.9 cm)
Scanner to IB-131
With this configuration the scanner
communicates directly with the host
through the IB-131.
IB-131: 99-000018-01
(1 per MS-9)
Host RS-232 Serial Cable:
61-300026-03
Power Supply: 97-100004-15
Trigger: 99-000017-01
3.2"
(8.13 cm)
Host
3.15" (8 cm)

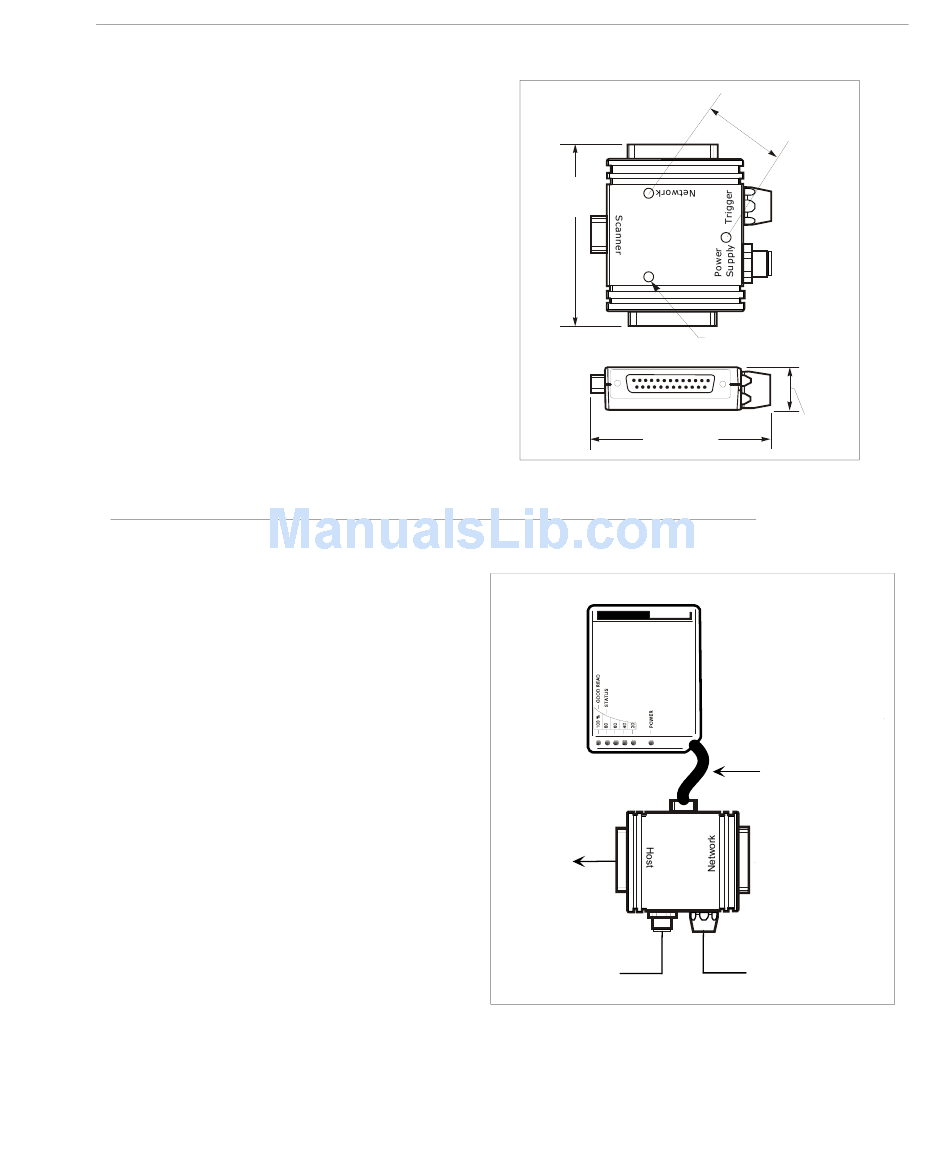

Figure A-5 IB-131 Mechanical

MS-9
U
Scanner
Host
Power
Power supply
97-100004-15

Figure A-6 MS-9/IB-131 Typical Setup

MS-9 Scanner User's Manual
Appendices
Mounting holes
3 places
1.25" (3.18 cm)
0.17: (0.43 cm) dia.
3. places
.75"
(1.9 cm)
Attached scanner
cable (3 feet)
Trigger
Trigger
99-000017-01
A-11
