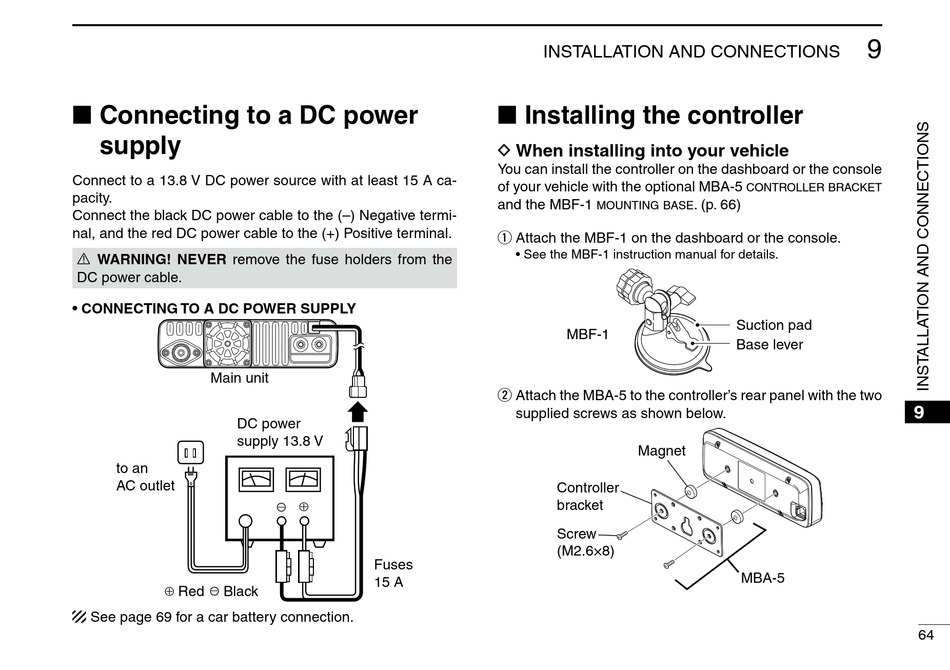

■ Connecting to a DC power
supply
Connect to a 13.8 V DC power source with at least 15 A ca-
pacity.
Connect the black DC power cable to the (–) Negative termi-
nal, and the red DC power cable to the (+) Positive terminal.
R WARNING! NEVER remove the fuse holders from the
DC power cable.

• CONNECTING TO A DC POWER SUPPLY

Main unit
DC power
supply 13.8 V
to an
AC outlet
−
⊕ Red Black
See page 69 for a car battery connection.
−
⊕
Fuses
15 A
INSTALLATION AND CONNECTIONS

■ Installing the controller

D When installing into your vehicle
You can install the controller on the dashboard or the console
of your vehicle with the optional MBA-5
and the MBF-1
mounting base
Attach the MBF-1 on the dashboard or the console.
q
• See the MBF-1 instruction manual for details.
MBF-1
Attach the MBA-5 to the controller
w
supplied screws as shown below.
Magnet
Controller
bracket
Screw
(M2.6×8)
9
controller bracket
. (p. 66)
Suction pad
Base lever
's rear panel with the two
MBA-5
9
