2

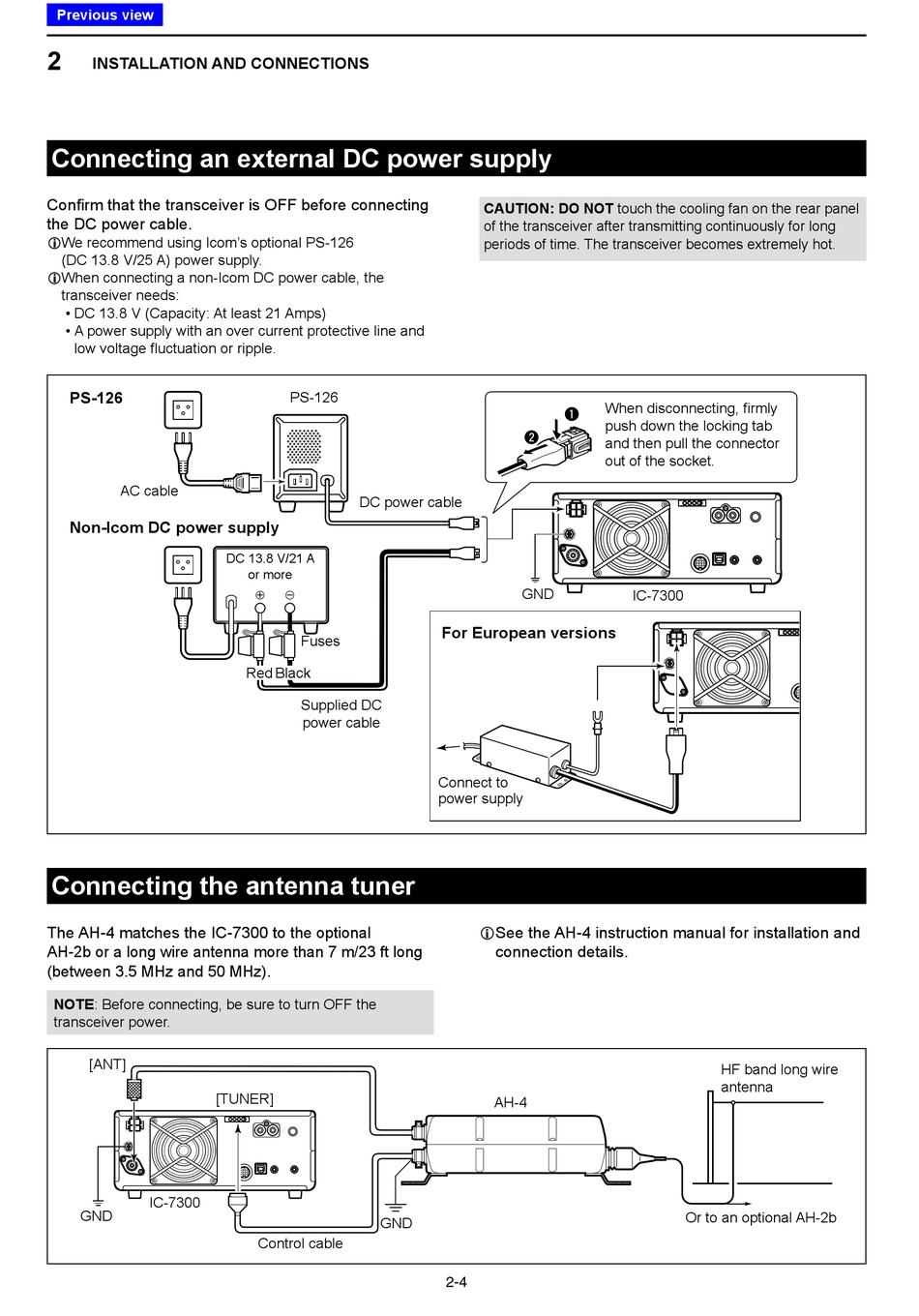

INSTALLATION AND CONNECTIONS

Connecting an external DC power supply

Confirm that the transceiver is OFF before connecting
the DC power cable.
L We recommend using Icom's optional PS-126
(DC 13.8 V/25 A) power supply.
L When connecting a non-Icom DC power cable, the
transceiver needs:
• DC 13.8 V (Capacity: At least 21 Amps)
• A power supply with an over current protective line and
low voltage fluctuation or ripple.
PS-126
AC cable
Non-Icom DC power supply

Connecting the antenna tuner

The AH-4 matches the IC-7300 to the optional
AH-2b or a long wire antenna more than 7 m/23 ft long
(between 3.5 MHz and 50 MHz).
NOTE: Before connecting, be sure to turn OFF the
transceiver power.
[ANT]
[TUNER]
IC-7300
GND
PS-126
DC power cable
DC 13.8 V/21 A
or more
+ _
Fuses
Red Black
Supplied DC
power cable
GND
Control cable
CAUTION: DO NOT touch the cooling fan on the rear panel
of the transceiver after transmitting continuously for long
periods of time. The transceiver becomes extremely hot.
When disconnecting, firmly
q
push down the locking tab
w
and then pull the connector
out of the socket.
GND
For European versions
Connect to
power supply
L See the AH-4 instruction manual for installation and
connection details.
AH-4
2-4
IC-7300
HF band long wire
antenna
Or to an optional AH-2b
