8
OTHER FUNCTIONS

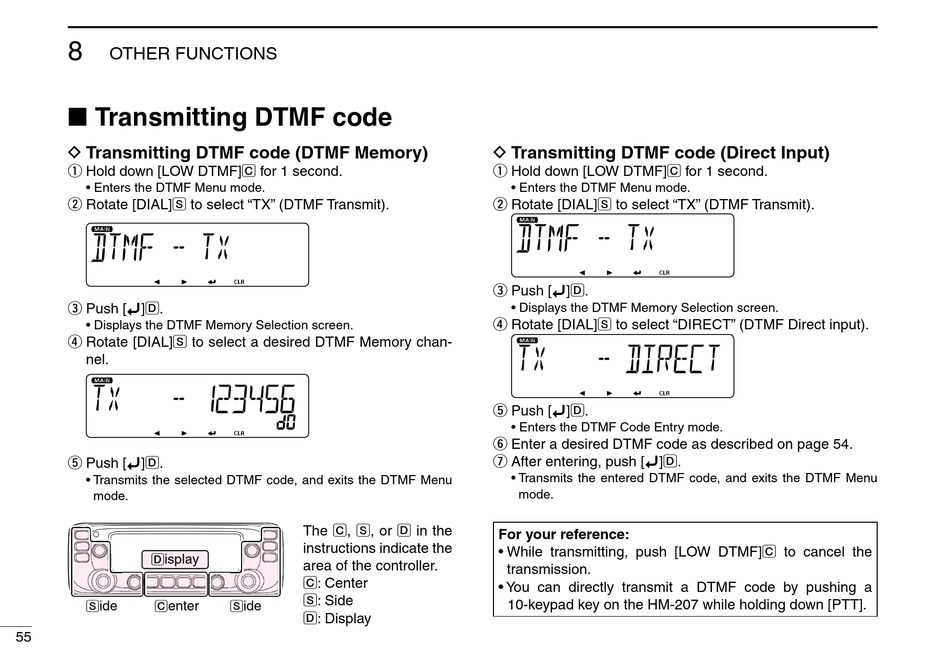

■ Transmitting DTMF code

D Transmitting DTMF code (DTMF Memory)
Hold down [LOW DTMF]
q
• Enters the DTMF Menu mode.
w Rotate [DIAL]S to select "TX" (DTMF Transmit).
ï]D.
Push [
e
• Displays the DTMF Memory Selection screen.
r Rotate [DIAL]S to select a desired DTMF Memory chan-
nel.
Push [ ï]D.
t
• Transmits the selected DTMF code, and exits the DTMF Menu
mode.
D isplay
S ide C enter
55
C for 1 second.
The C, S, or D in the
instructions indicate the
area of the controller.
C: Center
S: Side
S ide
D: Display
D Transmitting DTMF code (Direct Input)
Hold down [LOW DTMF] C for 1 second.
q
• Enters the DTMF Menu mode.
w Rotate [DIAL]S to select "TX" (DTMF Transmit).
Push [ ï]D.
e
• Displays the DTMF Memory Selection screen.
r Rotate [DIAL]S to select "DIRECT" (DTMF Direct input).
ï]D.
Push [
t
• Enters the DTMF Code Entry mode.
Enter a desired DTMF code as described on page 54.
y
ï]D.
After entering, push [
u
• Transmits the entered DTMF code, and exits the DTMF Menu
mode.
For your reference:
• While transmitting, push [LOW DTMF]C to cancel the
transmission.
• You can directly transmit a DTMF code by pushing a
10-keypad key on the HM-207 while holding down [PTT].
