1

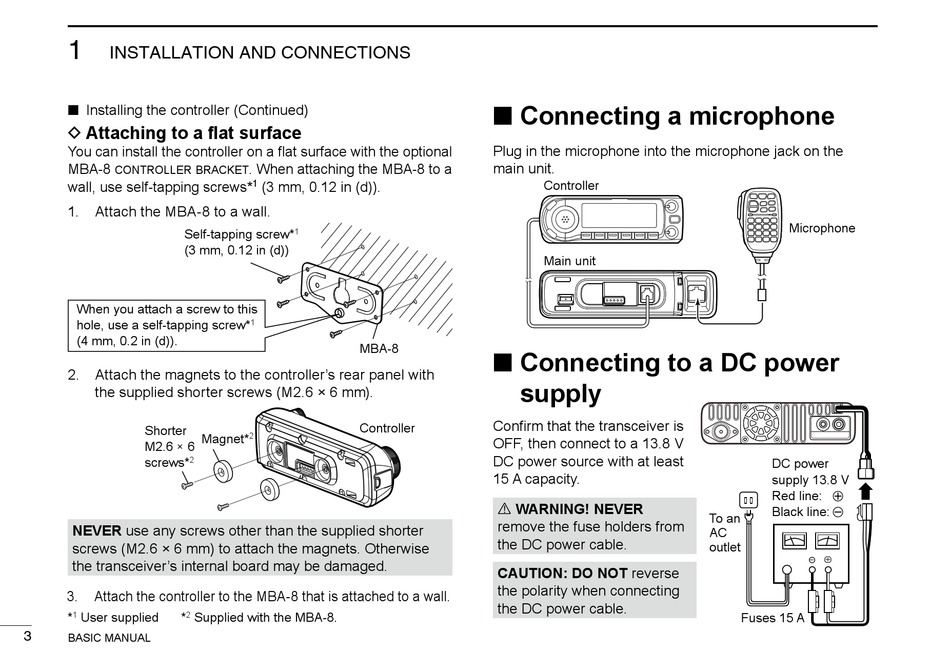

INSTALLATION AND CONNECTIONS
■ Installing the controller (Continued)
D Attaching to a flat surface
You can install the controller on a flat surface with the optional
MBA-8
controller bracket
wall, use self-tapping screws*
1. Attach the MBA-8 to a wall.
Self-tapping screw*
(3 mm, 0.12 in (d))
When you attach a screw to this
hole, use a self-tapping screw*
(4 mm, 0.2 in (d)).
2. Attach the magnets to the controller's rear panel with
the supplied shorter screws (M2.6 × 6 mm).
Shorter
Magnet*
M2.6 × 6
screws* 2
NEVER use any screws other than the supplied shorter
screws (M2.6 × 6 mm) to attach the magnets. Otherwise
the transceiver's internal board may be damaged.
3. Attach the controller to the MBA-8 that is attached to a wall.
* 1 User supplied * 2 Supplied with the MBA-8.
3
BASIC MANUAL
. When attaching the MBA-8 to a
1 (3 mm, 0.12 in (d)).
1
1
MBA-8
Controller
2

■ Connecting a microphone

Plug in the microphone into the microphone jack on the
main unit.
Controller
Main unit
■ Connecting to a DC power
supply
Confirm that the transceiver is
OFF, then connect to a 13.8 V
DC power source with at least
15 A capacity.
R WARNING! NEVER
remove the fuse holders from
the DC power cable.
CAUTION: DO NOT reverse
the polarity when connecting
the DC power cable.
Microphone
DC power
supply 13.8 V
Red line: +
Black line: _
To an
AC
outlet
− ⊕
Fuses 15 A
