9

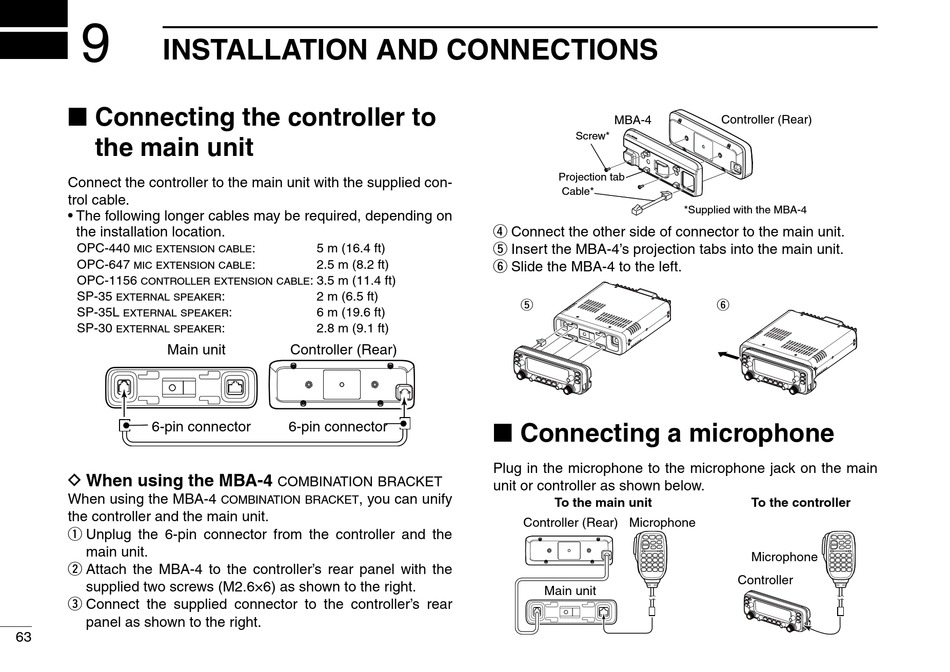

INSTALLATION AND CONNECTIONS
■ Connecting the controller to
the main unit
Connect the controller to the main unit with the supplied con-
trol cable.
• The following longer cables may be required, depending on
the installation location.
OPC-440
mic extension cable
OPC-647
mic extension cable
OPC-1156
controller extension cable
SP-35
external speaker
SP-35L
external speaker
SP-30
external speaker
Main unit
6-pin connector
D When using the MBA-4
When using the MBA-4
the controller and the main unit.
Unplug the 6-pin connector from the controller and the
q
main unit.
Attach the MBA-4 to the controller
w
supplied two screws (M2.6×6) as shown to the right.
Connect the supplied connector to the controller
e
panel as shown to the right.
63
:
5 m (16.4 ft)
:
2.5 m (8.2 ft)
: 3.5 m (11.4 ft)
:
2 m (6.5 ft)
:
6 m (19.6 ft)
:
2.8 m (9.1 ft)
Controller (Rear)
6-pin connector
combination bracket
, you can unify
combination bracket
's rear panel with the
Screw*
Projection tab
Cable*
Connect the other side of connector to the main unit.
r
Insert the MBA-4
t
Slide the MBA-4 to the left.
y
t
■ Connecting a microphone
Plug in the microphone to the microphone jack on the main
unit or controller as shown below.
To the main unit
Controller (Rear)
Main unit
's rear
MBA-4
Controller (Rear)
*Supplied with the MBA-4
's projection tabs into the main unit.
y
To the controller
Microphone
Microphone
Controller
