8
OTHER FUNCTIONS

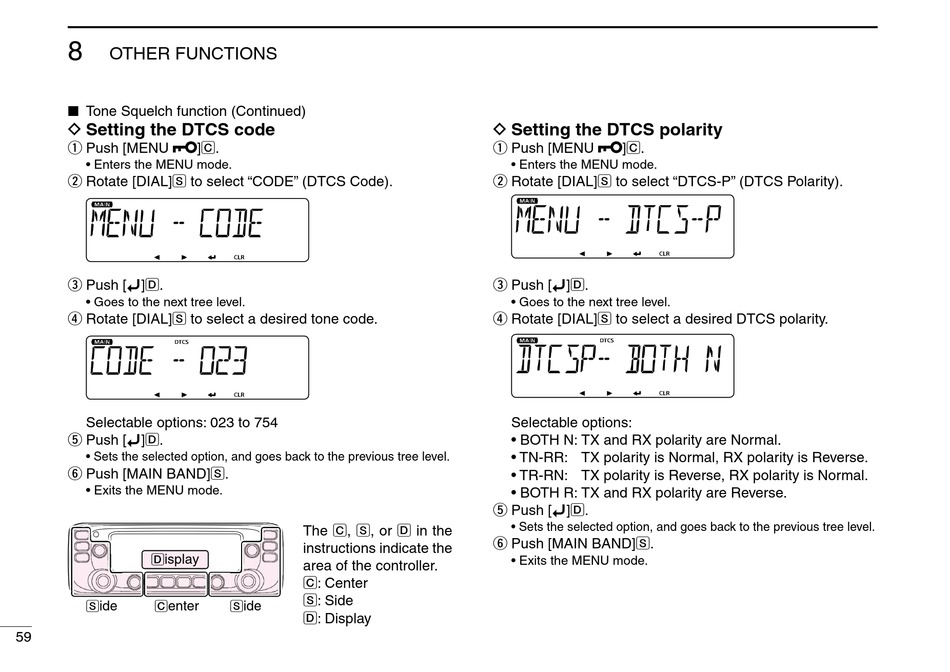

Tone Squelch function (Continued)
■
D Setting the DTCS code
Push [MENU
q
• Enters the MENU mode.
w Rotate [DIAL]S to select "CODE" (DTCS Code).
Push [ ï]D.
e
• Goes to the next tree level.
Rotate [DIAL] S to select a desired tone code.
r
Selectable options: 023 to 754
Push [ ï]D.
t
• Sets the selected option, and goes back to the previous tree level.
Push [MAIN BAND]
y
• Exits the MENU mode.
D isplay
S ide C enter
59
]C.
S.
The C, S, or D in the
instructions indicate the
area of the controller.
C: Center
S: Side
S ide
D: Display
D Setting the DTCS polarity
Push [MENU ]C.
q
• Enters the MENU mode.
w Rotate [DIAL]S to select "DTCS-P" (DTCS Polarity).
Push [ ï]D.
e
• Goes to the next tree level.
Rotate [DIAL] S to select a desired DTCS polarity.
r
Selectable options:
• BOTH N: TX and RX polarity are Normal.
• TN-RR: TX polarity is Normal, RX polarity is Reverse.
• TR-RN: TX polarity is Reverse, RX polarity is Normal.
• BOTH R: TX and RX polarity are Reverse.
Push [ ï]D.
t
• Sets the selected option, and goes back to the previous tree level.
Push [MAIN BAND]
y
S.
• Exits the MENU mode.
