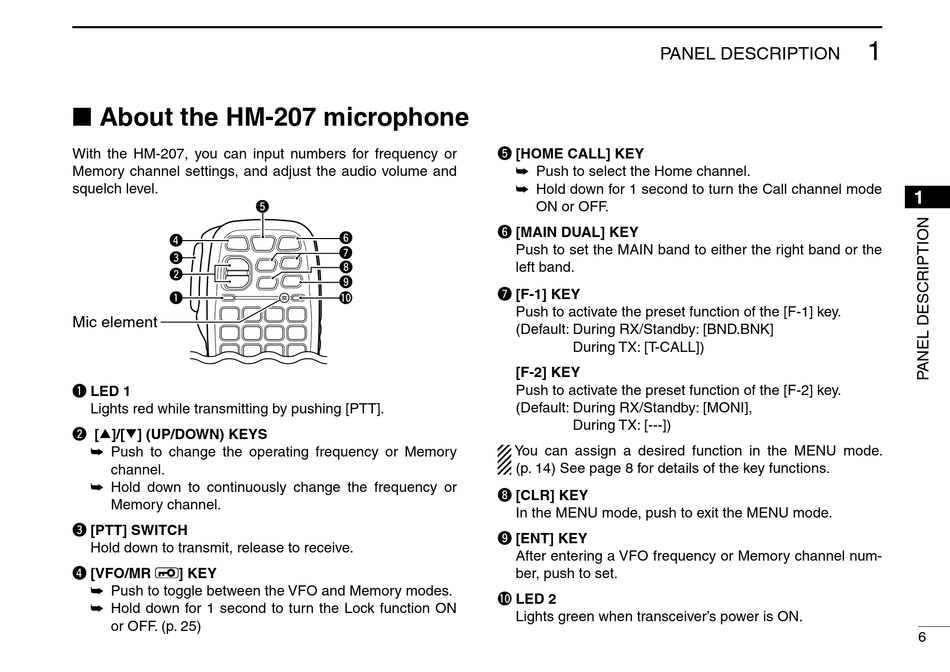

■ About the HM-207 microphone

With the HM-207, you can input numbers for frequency or
Memory channel settings, and adjust the audio volume and
squelch level.
r
e
w
q
Mic element
q LED 1
Lights red while transmitting by pushing [PTT].
w [∫]/[√] (UP/DOWN) KEYS
Push to change the operating frequency or Memory
➥
channel.
Hold down to continuously change the frequency or
➥
Memory channel.
e [PTT] SWITCH
Hold down to transmit, release to receive.
r [VFO/MR ] KEY
Push to toggle between the VFO and Memory modes.
➥
Hold down for 1 second to turn the Lock function ON
➥
or OFF. (p. 25)
t
y
u
i
o
!0
PANEL DESCRIPTION
t [HOME CALL] KEY
Push to select the Home channel.
➥
Hold down for 1 second to turn the Call channel mode
➥
ON or OFF.
y [MAIN DUAL] KEY
Push to set the MAIN band to either the right band or the
left band.
u [F-1] KEY
Push to activate the preset function of the [F-1] key.
(Default: During RX/Standby: [BND.BNK]
During TX: [T-CALL])
[F-2] KEY
Push to activate the preset function of the [F-2] key.
(Default: During RX/Standby: [MONI],
During TX: [---])
You can assign a desired function in the MENU mode.
(p. 14) See page 8 for details of the key functions.
i [CLR] KEY
In the MENU mode, push to exit the MENU mode.
o [ENT] KEY
After entering a VFO frequency or Memory channel num-
ber, push to set.
!0 LED 2
Lights green when transceiver's power is ON.
