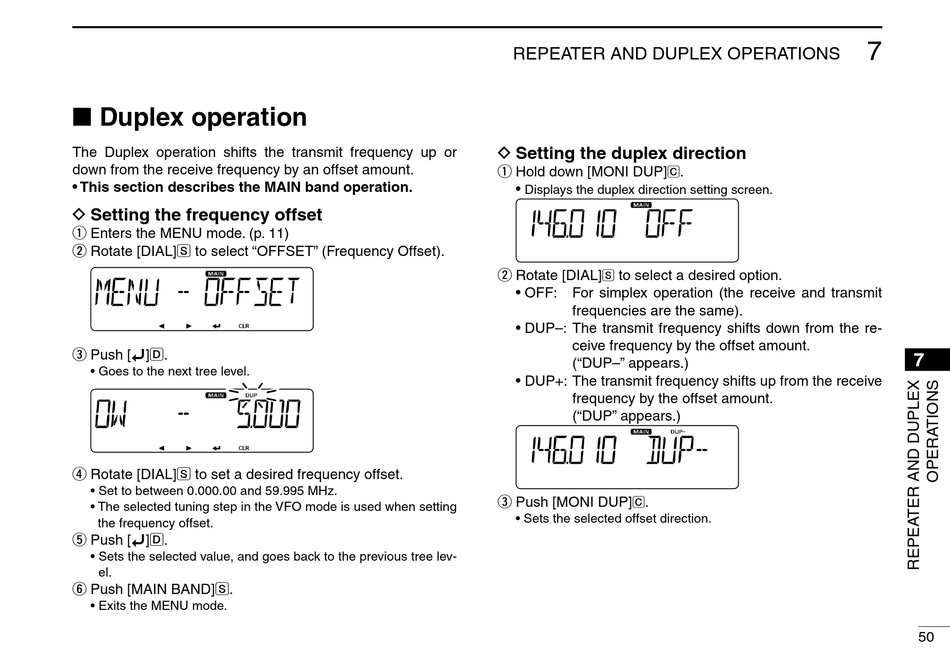

■ Duplex operation

The Duplex operation shifts the transmit frequency up or
down from the receive frequency by an offset amount.
• This section describes the MAIN band operation.
D Setting the frequency offset
Enters the MENU mode. (p. 11)
q
w Rotate [DIAL]S to select "OFFSET" (Frequency Offset).
ï]D.
Push [
e
• Goes to the next tree level.
r Rotate [DIAL]S to set a desired frequency offset.
• Set to between 0.000.00 and 59.995 MHz.
• The selected tuning step in the VFO mode is used when setting
the frequency offset.
Push [ ï]D.
t
• Sets the selected value, and goes back to the previous tree lev-
el.
Push [MAIN BAND]
y S.
• Exits the MENU mode.
REPEATER AND DUPLEX OPERATIONS
D Setting the duplex direction
Hold down [MONI DUP]
q
C
•
Displays the duplex direction setting screen.
Rotate [DIAL] to select a desired option.
w
S
• OFF: For simplex operation (the receive and transmit
frequencies are the same).
• DUP–: The transmit frequency shifts down from the re-
ceive frequency by the offset amount.
("DUP–" appears.)
• DUP+: The transmit frequency shifts up from the receive
frequency by the offset amount.
("DUP" appears.)
Push [MONI DUP] .
e
C
• Sets the selected offset direction.
.
