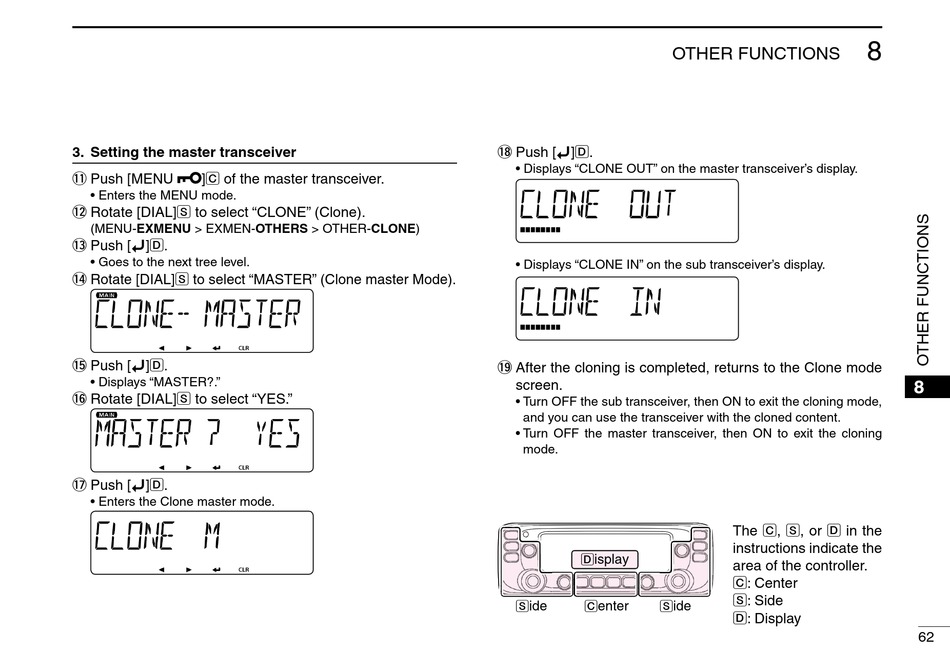

3.
Setting the master transceiver
!1 Push [MENU
]C of the master transceiver.
• Enters the MENU mode.
!2 Rotate [DIAL]S to select "CLONE" (Clone).
(MENU-EXMENU > EXMEN-OTHERS > OTHER-CLONE)
!3 Push [ï]D.
• Goes to the next tree level.
!4 Rotate [DIAL]S to select "MASTER" (Clone master Mode).
!5 Push [ï]D.
• Displays "MASTER?."
!6 Rotate [DIAL]S to select "YES."
!7 Push [ï]D.
• Enters the Clone master mode.
OTHER FUNCTIONS
!8 Push [ï]D.
• Displays "CLONE OUT" on the master transceiver's display.
• Displays "CLONE IN" on the sub transceiver's display.
!9 After the cloning is completed, returns to the Clone mode
screen.
• Turn OFF the sub transceiver, then ON to exit the cloning mode,
and you can use the transceiver with the cloned content.
• Turn OFF the master transceiver, then ON to exit the cloning
mode.
D isplay
S ide
C enter
S ide
8
The C, S, or D in the
instructions indicate the
area of the controller.
C: Center
S: Side
D: Display
8
