Icom i2730A Instruction Manual page 12

1

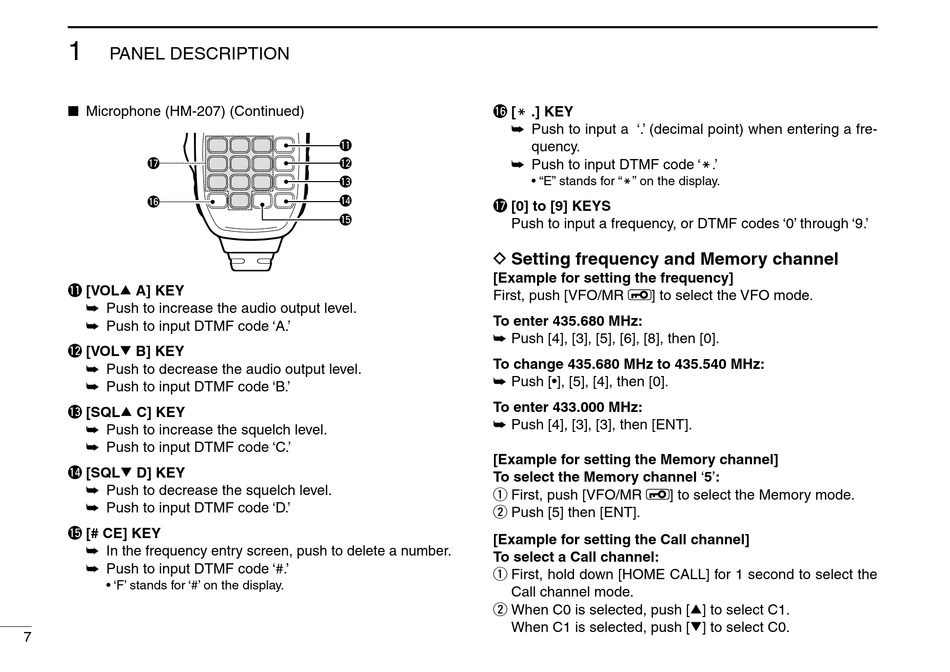

PANEL DESCRIPTION
Microphone (HM-207) (Continued)
■
!7
!6
!1 [VOL∫ A] KEY
Push to increase the audio output level.
➥
Push to input DTMF code 'A.'
➥
!2 [VOL√ B] KEY
Push to decrease the audio output level.
➥
Push to input DTMF code 'B.'
➥
!3 [SQL∫ C] KEY
Push to increase the squelch level.
➥
Push to input DTMF code 'C.'
➥
!4 [SQL√ D] KEY
Push to decrease the squelch level.
➥
Push to input DTMF code 'D.'
➥
!5 [# CE] KEY
In the frequency entry screen, push to delete a number.
➥
Push to input DTMF code '#.'
➥
• 'F' stands for '#' on the display.
7
!6 [M .] KEY
➥
!1
!2 ➥
!3
!4
!7 [0] to [9] KEYS
!5
Push to input a frequency, or DTMF codes '0' through '9.'
D Setting frequency and Memory channel
[Example for setting the frequency]
First, push [VFO/MR
To enter 435.680 MHz:
Push [4], [3], [5], [6], [8], then [0].
➥
To change 435.680 MHz to 435.540 MHz:
Push [•], [5], [4], then [0].
➥
To enter 433.000 MHz:
Push [4], [3], [3], then [ENT].
➥
[Example for setting the Memory channel]
To select the Memory channel '5':
First, push [VFO/MR
q
Push [5] then [ENT].
w
[Example for setting the Call channel]
To select a Call channel:
First, hold down [HOME CALL] for 1 second to select the
q
Call channel mode.
When C0 is selected, push [
w
When C1 is selected, push [√] to select C0.
Push to input a '.' (decimal point) when entering a fre-
quency.
Push to input DTMF code ' M.'
• "E" stands for "M" on the display.
] to select the VFO mode.
] to select the Memory mode.
∫] to select C1.
