9

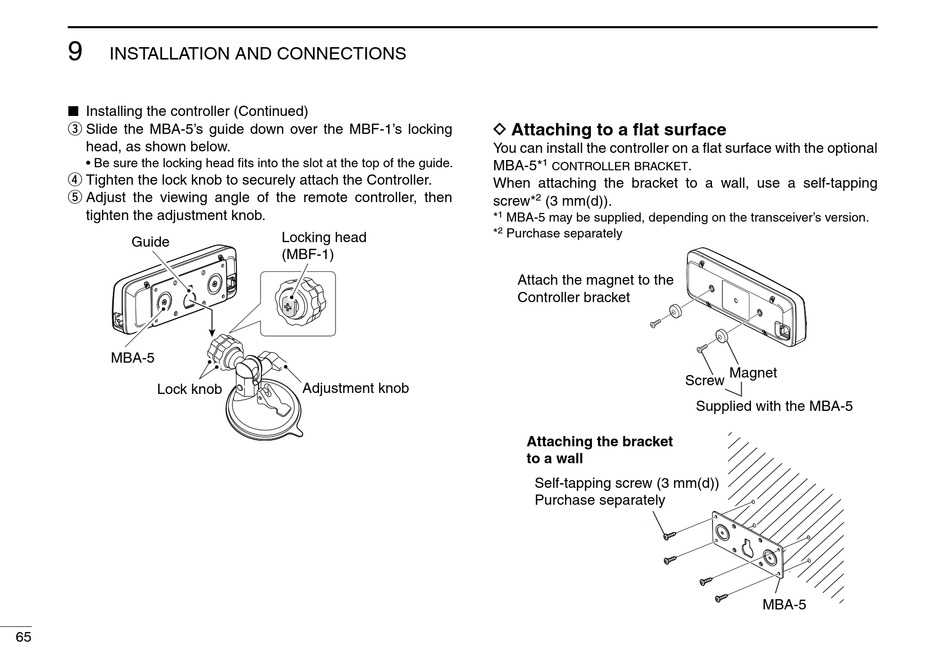

INSTALLATION AND CONNECTIONS
Installing the controller (Continued)
■
Slide the MBA-5
's guide down over the MBF-1's locking
e
head, as shown below.
• Be sure the locking head fits into the slot at the top of the guide.
Tighten the lock knob to securely attach the Controller.
r
Adjust the viewing angle of the remote controller, then
t
tighten the adjustment knob.
Guide
MBA-5
Lock knob
65
Locking head
(MBF-1)
Adjustment knob
D Attaching to a flat surface
You can install the controller on a flat surface with the optional
1
MBA-5*
controller bracket
When attaching the bracket to a wall, use a self-tapping
screw*
2
(3 mm(d)).
*
1
MBA-5 may be supplied, depending on the transceiver's version.
*
2
Purchase separately
Attach the magnet to the
Controller bracket
Attaching the bracket
to a wall
Self-tapping screw (3 mm(d))
Purchase separately
.
Magnet
Screw
Supplied with the MBA-5
MBA-5
