10

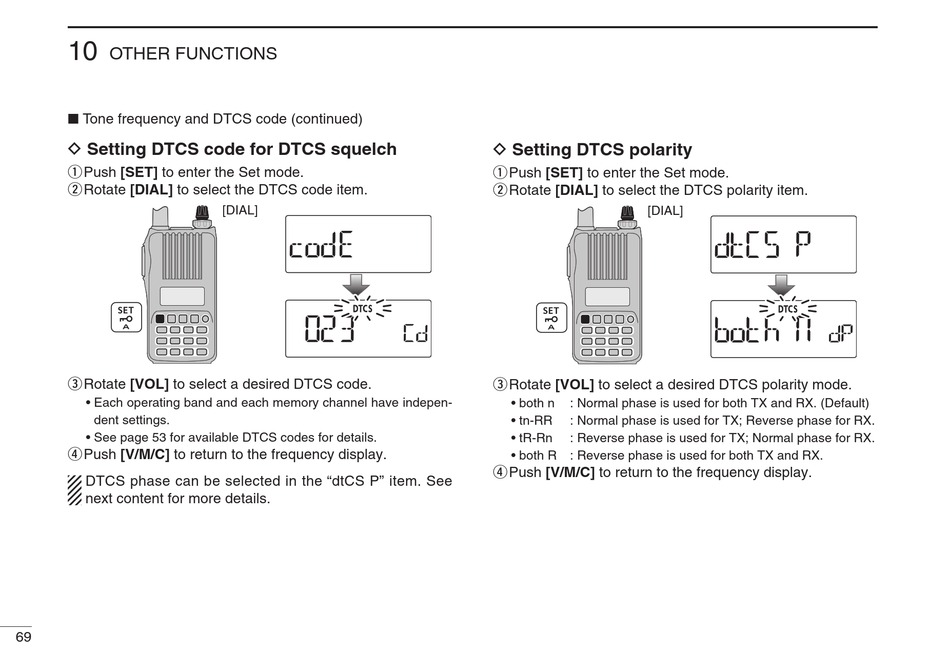

OTHER FUNCTIONS
■ Tone frequency and DTCS code (continued)
D Setting DTCS code for DTCS squelch
q Push [SET] to enter the Set mode.
w Rotate [DIAL] to select the DTCS code item.
e Rotate [VOL] to select a desired DTCS code.
• Each operating band and each memory channel have indepen-
dent settings.
• See page 53 for available DTCS codes for details.
r Push [V/M/C] to return to the frequency display.
DTCS phase can be selected in the "dtCS P" item. See
next content for more details.
69
[DIAL]
D Setting DTCS polarity
q Push [SET] to enter the Set mode.
w Rotate [DIAL] to select the DTCS polarity item.
[DIAL]
e Rotate [VOL] to select a desired DTCS polarity mode.
• both n
: Normal phase is used for both TX and RX. (Default)
• tn-RR
: Normal phase is used for TX; Reverse phase for RX.
• tR-Rn
: Reverse phase is used for TX; Normal phase for RX.
• both R : Reverse phase is used for both TX and RX.
r Push [V/M/C] to return to the frequency display.
