4
SETTINGS
Setting the group code number (Continued)

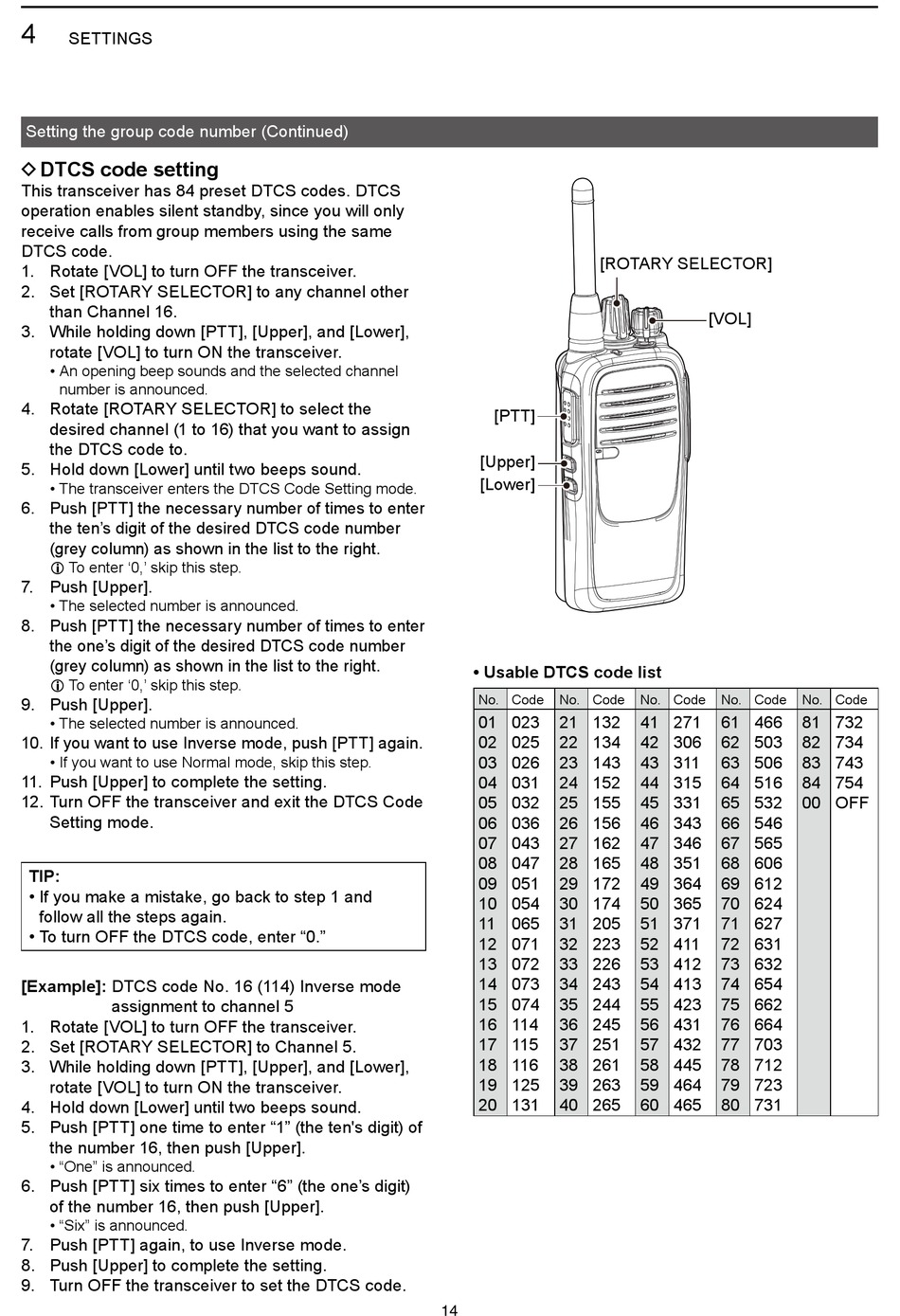

D DTCS code setting

This transceiver has 84 preset DTCS codes. DTCS
operation enables silent standby, since you will only
receive calls from group members using the same
DTCS code.
1. Rotate [VOL] to turn OFF the transceiver.
2. Set [ROTARY SELECTOR] to any channel other
than Channel 16.
3. While holding down [PTT], [Upper], and [Lower],
rotate [VOL] to turn ON the transceiver.
• An opening beep sounds and the selected channel
number is announced.
4. Rotate [ROTARY SELECTOR] to select the
desired channel (1 to 16) that you want to assign
the DTCS code to.
5. Hold down [Lower] until two beeps sound.
• The transceiver enters the DTCS Code Setting mode.
6. Push [PTT] the necessary number of times to enter
the ten's digit of the desired DTCS code number
(grey column) as shown in the list to the right.
L To enter '0,' skip this step.
7. Push [Upper].
• The selected number is announced.
8. Push [PTT] the necessary number of times to enter
the one's digit of the desired DTCS code number
(grey column) as shown in the list to the right.
L To enter '0,' skip this step.
9. Push [Upper].
• The selected number is announced.
10. If you want to use Inverse mode, push [PTT] again.
• If you want to use Normal mode, skip this step.
11. Push [Upper] to complete the setting.
12. Turn OFF the transceiver and exit the DTCS Code
Setting mode.
TIP:
• If you make a mistake, go back to step 1 and
follow all the steps again.
• To turn OFF the DTCS code, enter "0."
[Example]: DTCS code No. 16 (114) Inverse mode
assignment to channel 5
1. Rotate [VOL] to turn OFF the transceiver.
2. Set [ROTARY SELECTOR] to Channel 5.
3. While holding down [PTT], [Upper], and [Lower],
rotate [VOL] to turn ON the transceiver.
4. Hold down [Lower] until two beeps sound.
5. Push [PTT] one time to enter "1" (the ten's digit) of
the number 16, then push [Upper].
• "One" is announced.
6. Push [PTT] six times to enter "6" (the one's digit)
of the number 16, then push [Upper].
• "Six" is announced.
7. Push [PTT] again, to use Inverse mode.
8. Push [Upper] to complete the setting.
9. Turn OFF the transceiver to set the DTCS code.
[ROTARY SELECTOR]
[PTT]
[Upper]
[Lower]
• Usable DTCS code list
No. Code No. Code
01 023 21 132
02 025 22 134
03 026 23 143
04 031 24 152
05 032 25 155
06 036 26 156
07 043 27 162
08 047 28 165
09 051 29 172
10 054 30 174
11 065 31 205
12 071 32 223
13 072 33 226
14 073 34 243
15 074 35 244
16 114 36 245
17 115 37 251
18 116 38 261
19 125 39 263
20 131 40 265
14
[VOL]
No. Code No. Code No. Code
41 271 61 466 81
42 306 62 503 82
43 311 63 506 83
44 315 64 516 84
45 331 65 532 00
46 343 66 546
47 346 67 565
48 351 68 606
49 364 69 612
50 365 70 624
51 371 71 627
52 411 72 631
53 412 73 632
54 413 74 654
55 423 75 662
56 431 76 664
57 432 77 703
58 445 78 712
59 464 79 723
60 465 80 731
732
734
743
754
OFF
