INSTALLATION AND CONNECTIONS
Linear amplifier connections

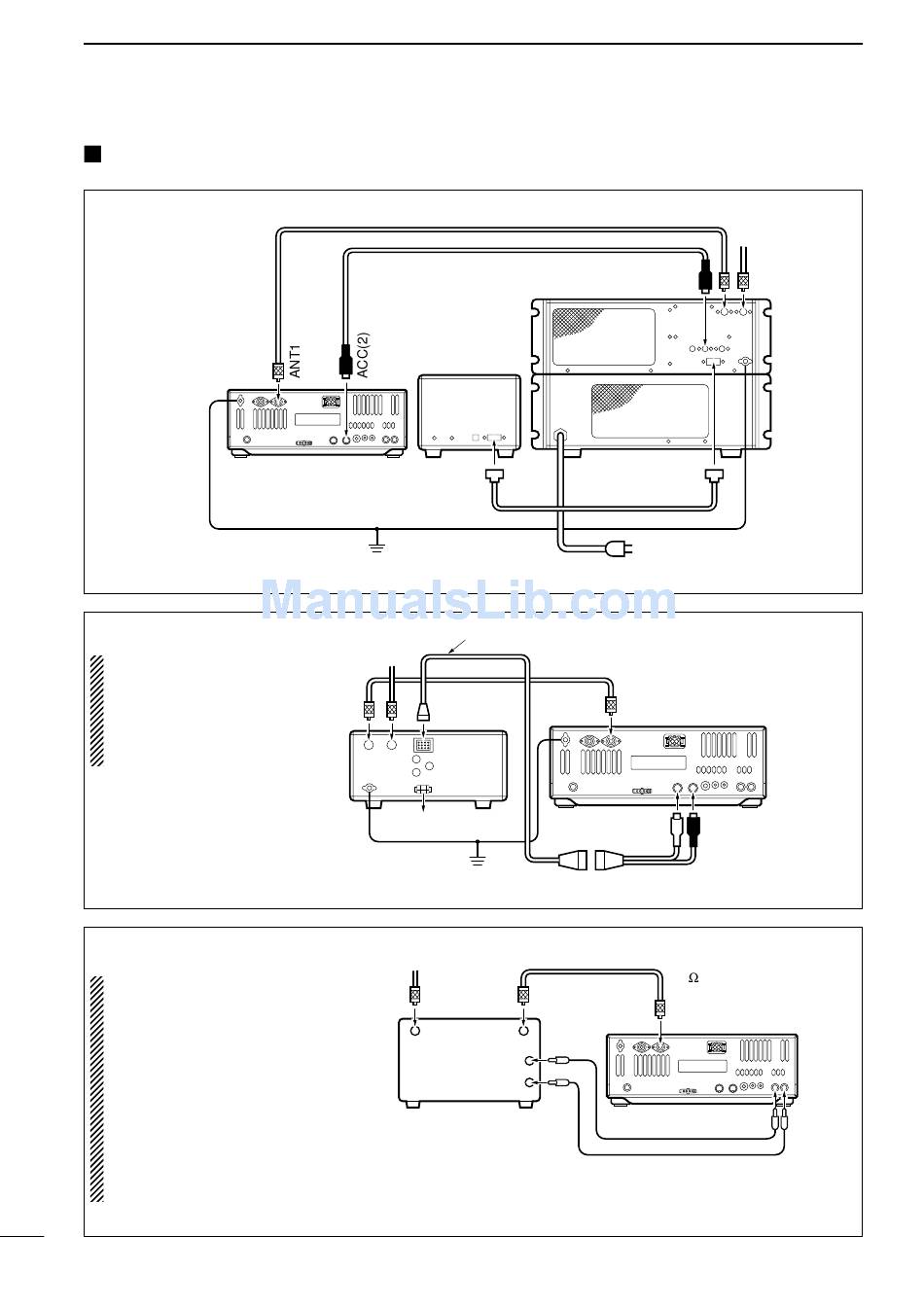

CONNECTING THE IC-4KL
NOTE: Turn OFF the transceiver's antenna tuner while tuning the IC-4KL's tuner.
CONNECTING THE IC-2KL
CAUTION:
Set the transceiver output
power for 80 W max. with
the [RF POWER] control,
otherwise, a protection cir-
cuit will activate.
CONNECTING A NON-ICOM POWER AMPLIFIER
R WARNING:
Set the transceiver output power
and linear amplifier ALC output
level referring to the linear ampli-
fier instruction manual.
The ALC input level must be in the
range 0 V to –4 V, and the trans-
ceiver does not accept positive
voltage. Non-matched ALC and
RF power settings could cause a
fire or ruin the linear amplifier.
17
Coaxial cable
ACC cable
IC-4KL
Remote
controller
Transceiver
Ground
To an antenna
ANT
IC-2KL
GND
To the IC-2KLPS
Ground
To an
antenna
RF OUTPUT
NON-ICOM LINEAR
AMPLIFIER
NOTE: The specifications for the SEND relay are 16 V DC 2 A. If
this level is exceeded, a large external relay must be used.
Use the [ANT1] connector when connecting a linear
amplifier.
(supplied with the IC-4KL)
(supplied with the IC-4KL)
Remote control cable
(supplied with the IC-4KL)
ACC cable
(supplied with the IC-2KL)
Coaxial cable
ANT1
ACC(1)
OPC-118
RF INPUT
ALC
SEND
To an
antenna
ACC
IC-4KL
AC outlet
(220–240 V)
(supplied with the IC-2KL)
Transceiver
ACC(2)
(sold separately)
50 coaxial cable
ANT1
Transceiver
ALC SEND
