INSTALLATION AND CONNECTIONS

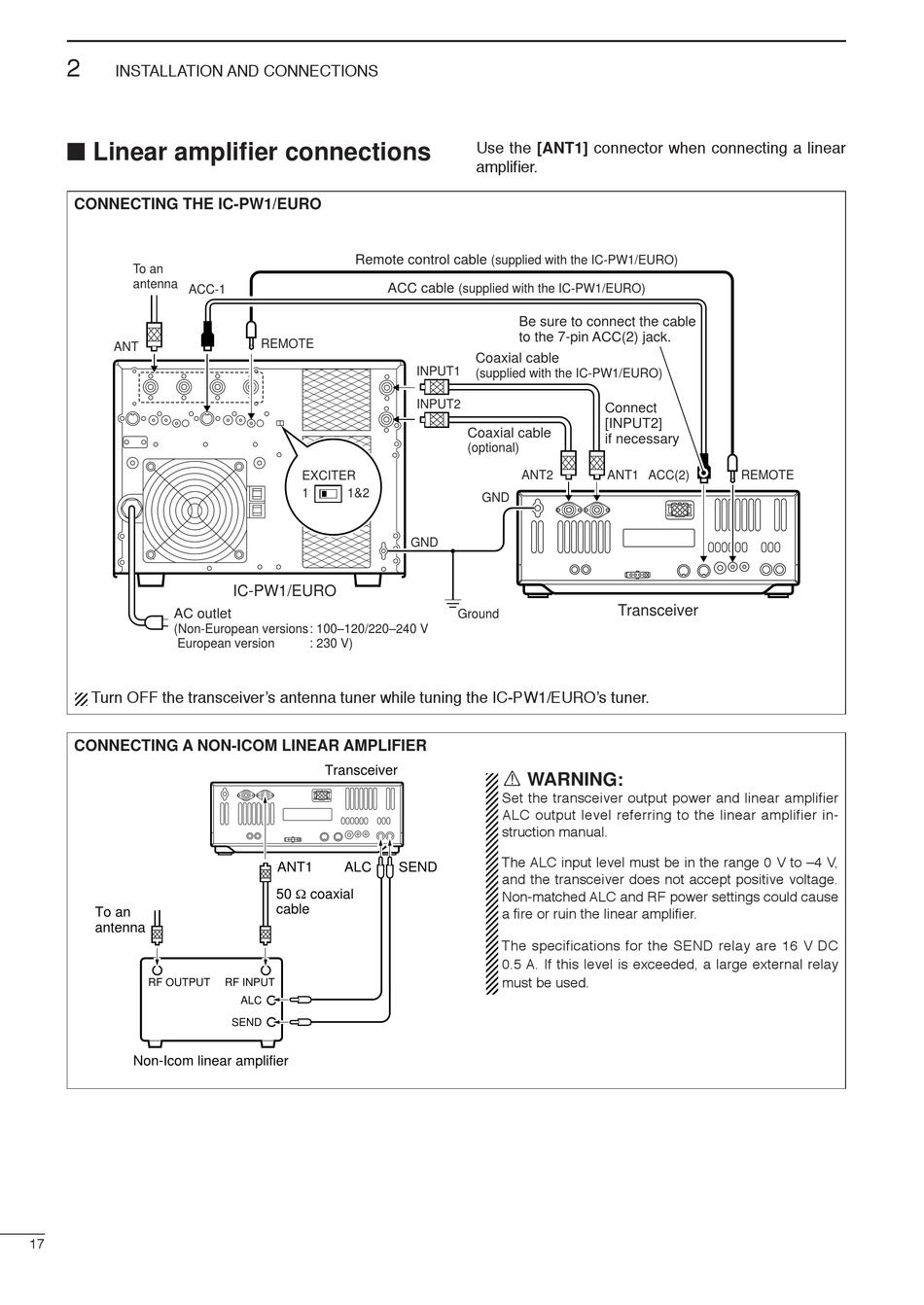

■ Linear amplifier connections
CONNECTING THE IC-PW1/EURO
To an
antenna ACC-1
ANT
AC outlet
(Non-European versions: 100–120/220–240 V
European version
Turn OFF the transceiver's antenna tuner while tuning the IC-PW1/EURO's tuner.
CONNECTING A NON-ICOM LINEAR AMPLIFIER
To an
antenna
RF OUTPUT
Non-Icom linear amplifier
17
Remote control cable
ACC cable
REMOTE
EXCITER
1 1&2
IC-PW1/EURO
: 230 V)
Transceiver
ANT1 ALC SEND
50 Ω coaxial
cable
RF INPUT
ALC
SEND
Use the [ANT1] connector when connecting a linear
amplifier.
(supplied with the IC-PW1/EURO)
(supplied with the IC-PW1/EURO)
Be sure to connect the cable
to the 7-pin ACC(2) jack.
Coaxial cable
INPUT1
(supplied with the IC-PW1/EURO)
INPUT2
Coaxial cable
(optional)
ANT2
GND
GND
Ground
R WARNING:
Set the transceiver output power and linear amplifier
ALC output level referring to the linear amplifier in-
struction manual.
The ALC input level must be in the range 0 V to –4 V,
and the transceiver does not accept positive voltage.
Non-matched ALC and RF power settings could cause
a fire or ruin the linear amplifier.
The specifications for the SEND relay are 16 V DC
0.5 A. If this level is exceeded, a large external relay
must be used.
Connect
[INPUT2]
if necessary
ANT1 ACC(2) REMOTE
Transceiver
