PANEL DESCRIPTION

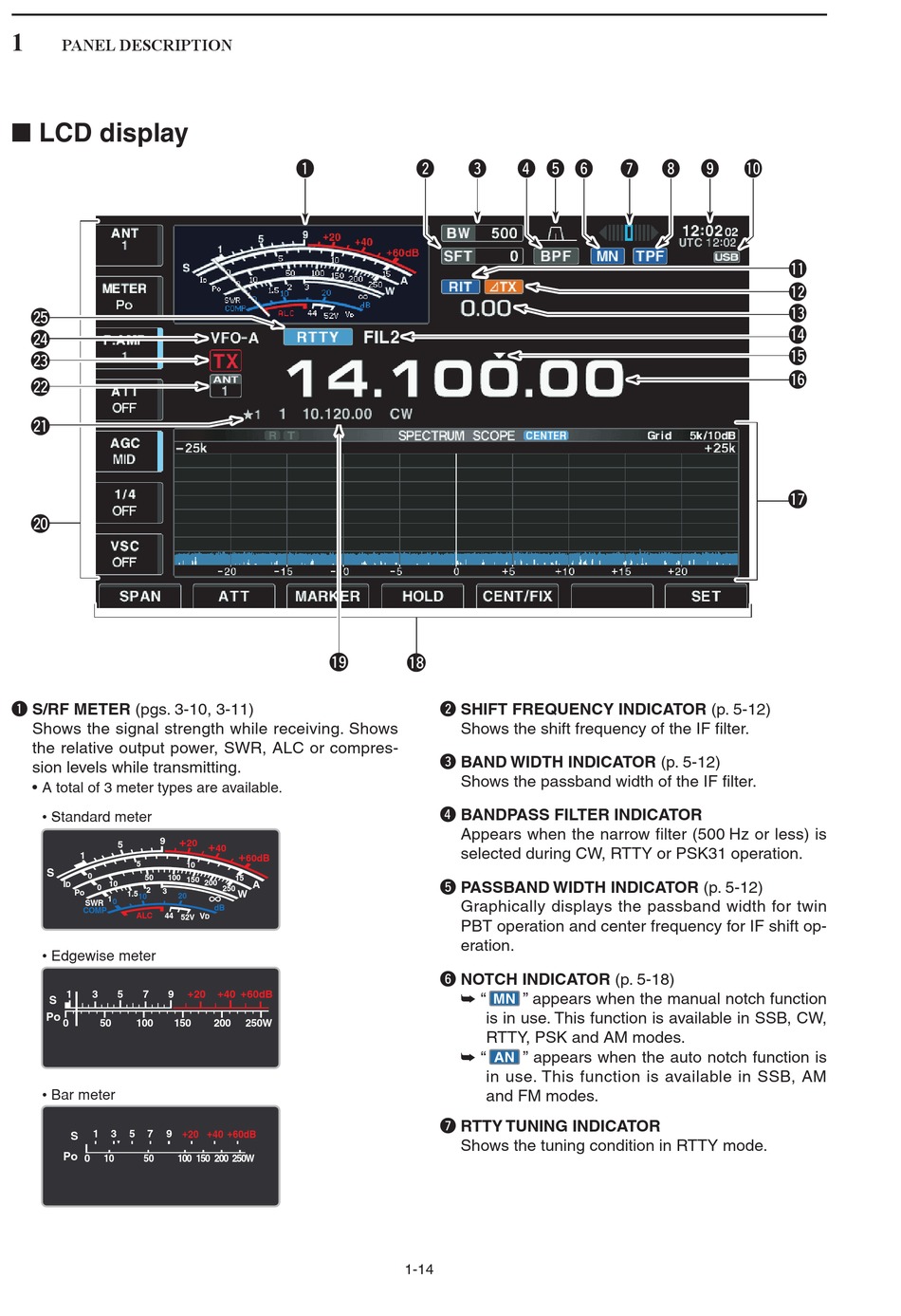

■ LCD display

@5
@4
@3
@2
@1
@0
q S/RF METER (pgs. 3-10, 3-11)
Shows the signal strength while receiving. Shows
the relative output power, SWR, ALC or compres-
sion levels while transmitting.
• A total of 3 meter types are available.
• Standard meter
9
5
1
5
S
0
50 100 150
I
10
D
0
2
3
Po
1.5
10
1
0
SWR
COMP
ALC 44 52V
• Edgewise meter
1 3 5 7 9
S
Po
0 50 100 150
• Bar meter
1 3 5 7 9
S
Po
0 10 50
q
!9
+
20
+
40
+
60dB
10
15
200 A
250
∞
W
20
dB
V
D
+20 +40 +60dB
200 250W
+20 +40 +60dB
100 150 200 250W
w e r t
!8
w SHIFT FREQUENCY INDICATOR (p. 5-12)
Shows the shift frequency of the IF filter.
e BAND WIDTH INDICATOR (p. 5-12)
Shows the passband width of the IF filter.
r BANDPASS FILTER INDICATOR
Appears when the narrow filter (500 Hz or less) is
selected during CW, RTTY or PSK31 operation.
t PASSBAND WIDTH INDICATOR (p. 5-12)
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
y NOTCH INDICATOR (p. 5-18)
➥ " " appears when the manual notch function
MN
is in use. This function is available in SSB, CW,
RTTY, PSK and AM modes.
➥ " " appears when the auto notch function is
AN
in use. This function is available in SSB, AM
and FM modes.
u RTTY TUNING INDICATOR
Shows the tuning condition in RTTY mode.
1-14
y u i o !0
!1
!2
!3
!4
!5
!6
!7
