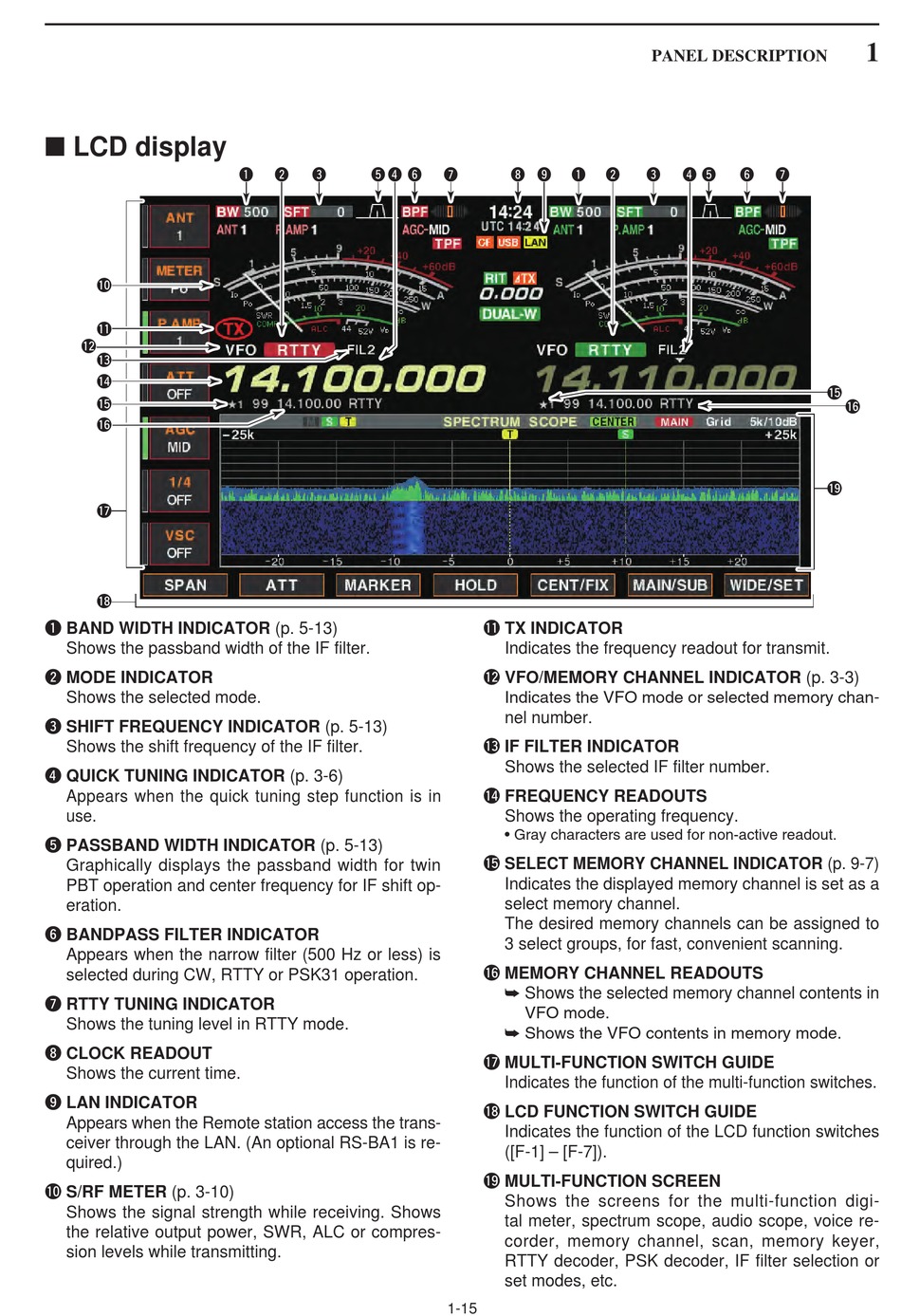

■ LCD display
!0
!1
!2
!3
!4
!5
!6
!7
!8
q BAND WIDTH INDICATOR (p. 5-13)
Shows the passband width of the IF filter.
w MODE INDICATOR
Shows the selected mode.
e SHIFT FREQUENCY INDICATOR (p. 5-13)
Shows the shift frequency of the IF filter.
r QUICK TUNING INDICATOR (p. 3-6)
Appears when the quick tuning step function is in
use.
t PASSBAND WIDTH INDICATOR (p. 5-13)
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
y BANDPASS FILTER INDICATOR
Appears when the narrow filter (500 Hz or less) is
selected during CW, RTTY or PSK31 operation.
u RTTY TUNING INDICATOR
Shows the tuning level in RTTY mode.
i CLOCK READOUT
Shows the current time.
o LAN INDICATOR
Appears when the Remote station access the trans-
ceiver through the LAN. (An optional RS-BA1 is re-
quired.)
!0 S/RF METER (p. 3-10)
Shows the signal strength while receiving. Shows
the relative output power, SWR, ALC or compres-
sion levels while transmitting.
q
w
e
t
r
y
u
i o
q
!1 TX INDICATOR
Indicates the frequency readout for transmit.
!2 VFO/MEMORY CHANNEL INDICATOR (p. 3-3)
Indicates the VFO mode or selected memory chan-
nel number.
!3 IF FILTER INDICATOR
Shows the selected IF filter number.
!4 FREQUENCY READOUTS
Shows the operating frequency.
• Gray characters are used for non-active readout.
!5 SELECT MEMORY CHANNEL INDICATOR (p. 9-7)
Indicates the displayed memory channel is set as a
select memory channel.
The desired memory channels can be assigned to
3 select groups, for fast, convenient scanning.
!6 MEMORY CHANNEL READOUTS
➥ Shows the selected memory channel contents in
VFO mode.
➥ Shows the VFO contents in memory mode.
!7 MULTI-FUNCTION SWITCH GUIDE
Indicates the function of the multi-function switches.
!8 LCD FUNCTION SWITCH GUIDE
Indicates the function of the LCD function switches
([F-1] – [F-7]).
!9 MULTI-FUNCTION SCREEN
Shows the screens for the multi-function digi-
tal meter, spectrum scope, audio scope, voice re-
corder, memory channel, scan, memory keyer,
RTTY decoder, PSK decoder, IF filter selection or
set modes, etc.
1-15
PANEL DESCRIPTION
w
e
r
t
y
1
u
!5
!6
!9
