Option Installation - Icom IC-7410 Instruction Manual

Icom strongly suggests that the customer have their
dealer or Icom distributor, for a reasonable fee, in-
stall Icom options at the time of the order. Icom un-
derstands that even the simplest of installations de-
mands the judgment of a trained Icom technician.
Therefore, Icom will not be responsible for damage
to the optional unit, or subsequent damage to the
transceiver due to user installation problems. The
option's or the transceiver's Warranty can be voided
in such situations, at the sole judgment of Icom.
For those customers who still wish to install their
own options, knowing the risks and possible con-
sequences, the following information is provided for
information purposes only.

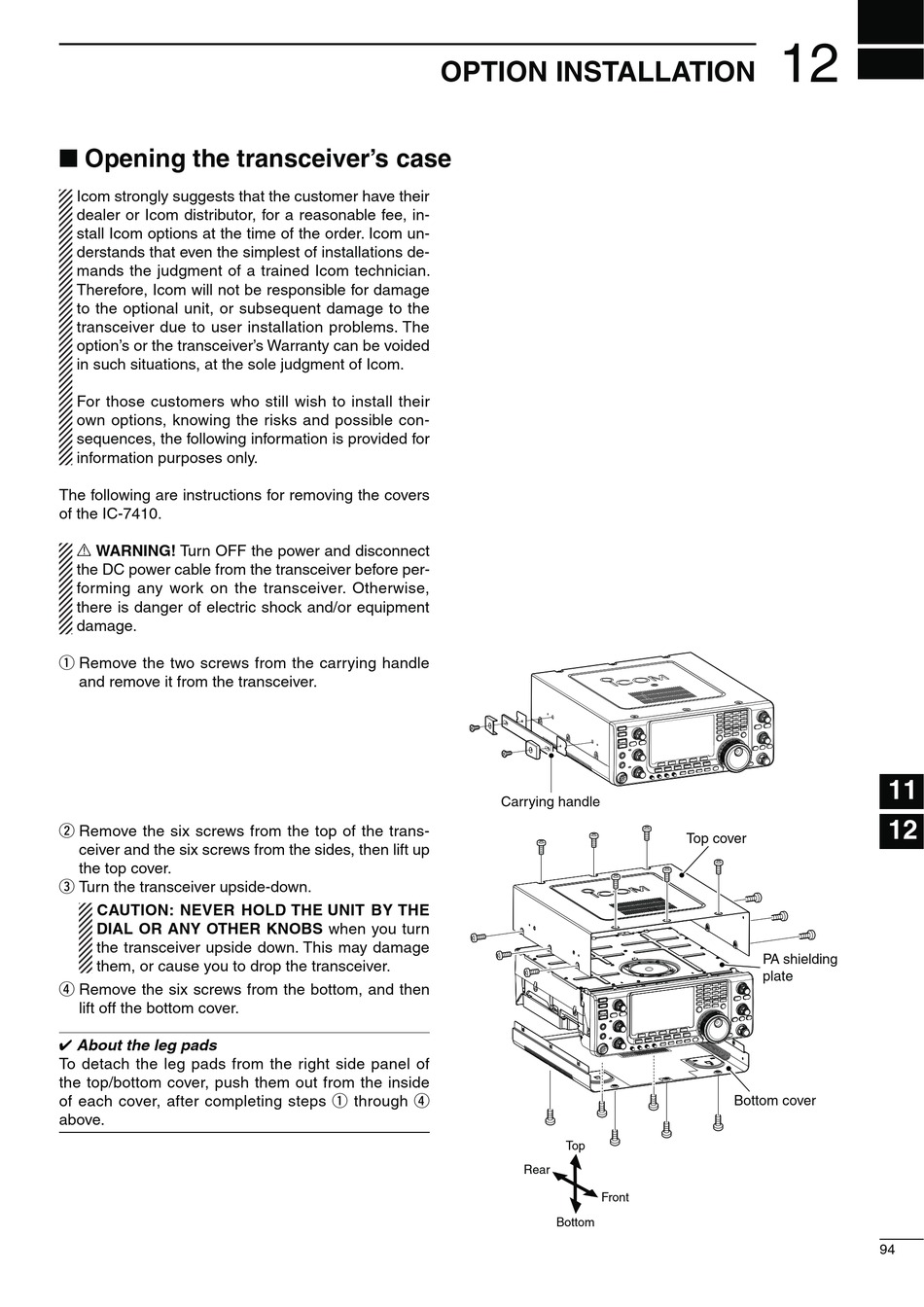

The following are instructions for removing the covers
of the IC-7410.
R WARNING! Turn OFF the power and disconnect
the DC power cable from the transceiver before per-
forming any work on the transceiver. Otherwise,
there is danger of electric shock and/or equipment
damage.
q Remove the two screws from the carrying handle
and remove it from the transceiver.
w Remove the six screws from the top of the trans-
ceiver and the six screws from the sides, then lift up
the top cover.
e Turn the transceiver upside-down.
the transceiver upside down. This may damage
them, or cause you to drop the transceiver.
r Remove the six screws from the bottom, and then
lift off the bottom cover.
About the leg pads
To detach the leg pads from the right side panel of
the top/bottom cover, push them out from the inside
of each cover, after completing steps q through r
above.

OPTION INSTALLATION

Carrying handle
when you turn
Top cover
Top
Rear
Front
Bottom
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PA shielding
plate
16
17
18
Bottom cover
19
20
21
94
