Icom IC-7410 Instruction Manual page 12

1

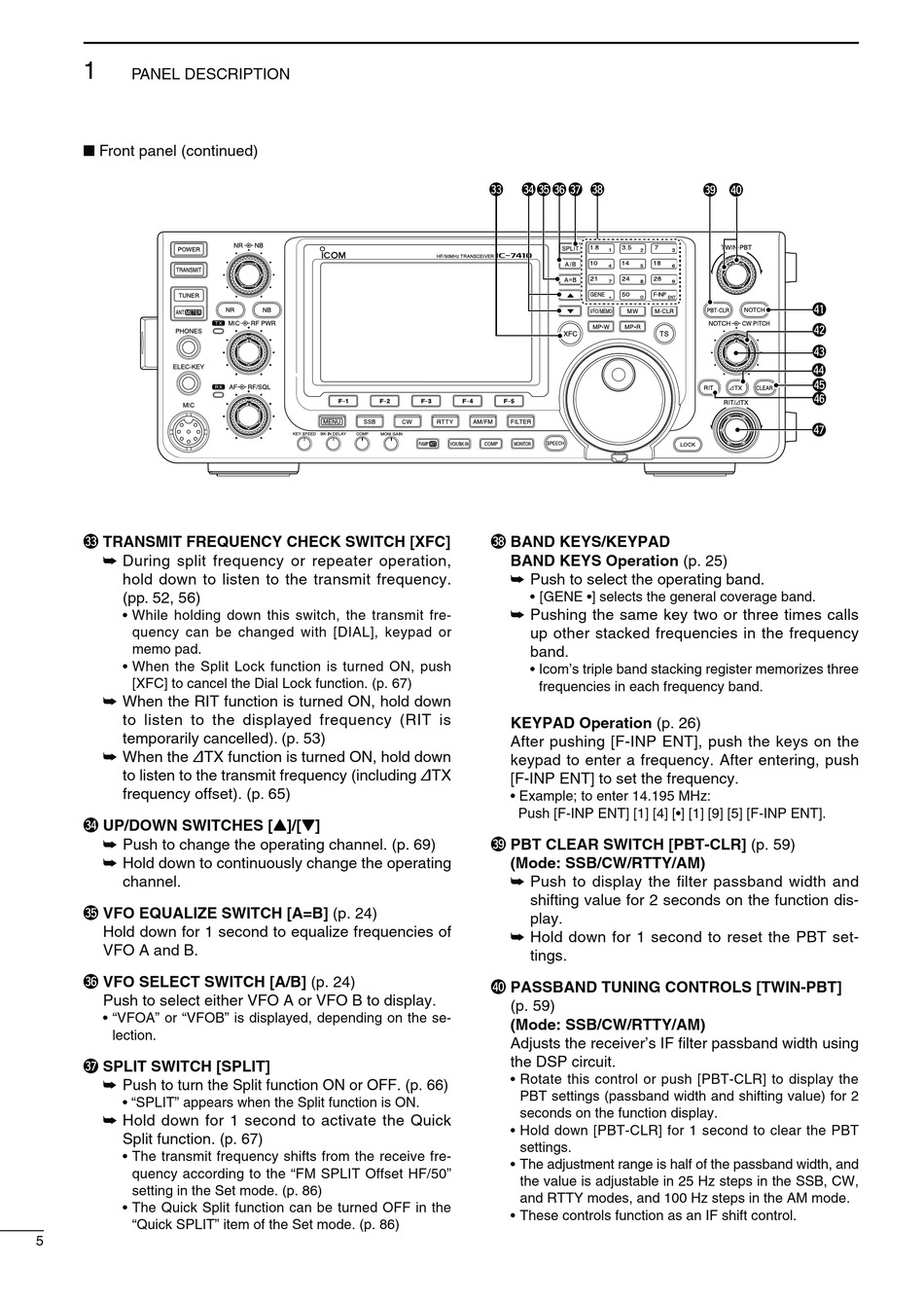

PANEL DESCRIPTION
Front panel (continued)
#3 TRANSMIT FREQUENCY CHECK SWITCH [XFC]
During split frequency or repeater operation,
hold down to listen to the transmit frequency.
(pp. 52, 56)
quency can be changed with [DIAL], keypad or
memo pad.
[XFC] to cancel the Dial Lock function. (p. 67)
When the RIT function is turned ON, hold down
to listen to the displayed frequency (RIT is
temporarily cancelled). (p. 53)
When the ∂TX function is turned ON, hold down
to listen to the transmit frequency (including ∂TX
frequency offset). (p. 65)
#4 UP/DOWN SWITCHES [Y]/[Z]
Push to change the operating channel. (p. 69)
Hold down to continuously change the operating
channel.
#5
Hold down for 1 second to equalize frequencies of
VFO A and B.
#6
Push to select either VFO A or VFO B to display.
lection.
#7 SPLIT SWITCH [SPLIT]
Push to turn the Split function ON or OFF. (p. 66)
Hold down for 1 second to activate the Quick
Split function. (p. 67)
quency according to the "FM SPLIT Offset HF/50"
setting in the Set mode. (p. 86)
"Quick SPLIT" item of the Set mode. (p. 86)
5
-
(p. 24)
(p. 24)
-
-
#8 3 #4 # 5 #6 #7 #8
#8
Push to select the operating band.
Pushing the same key two or three times calls
up other stacked frequencies in the frequency
band.
frequencies in each frequency band.
KEYPAD Operation (p. 26)
After pushing [F-INP ENT], push the keys on the
keypad to enter a frequency. After entering, push
[F-INP ENT] to set the frequency.
#9
Push to display the filter passband width and
shifting value for 2 seconds on the function dis-
play.
Hold down for 1 second to reset the PBT set-
tings.
$0
(p. 59)
Adjusts the receiver's IF filter passband width using
the DSP circuit.
Rotate this control or push [PBT-CLR] to display the
PBT settings (passband width and shifting value) for 2
seconds on the function display.
settings.
the value is adjustable in 25 Hz steps in the SSB, CW,
and RTTY modes, and 100 Hz steps in the AM mode.
#9 $0
$1
$2
$3
$4
$5
$6
$7
(p. 25)
(p. 59)
