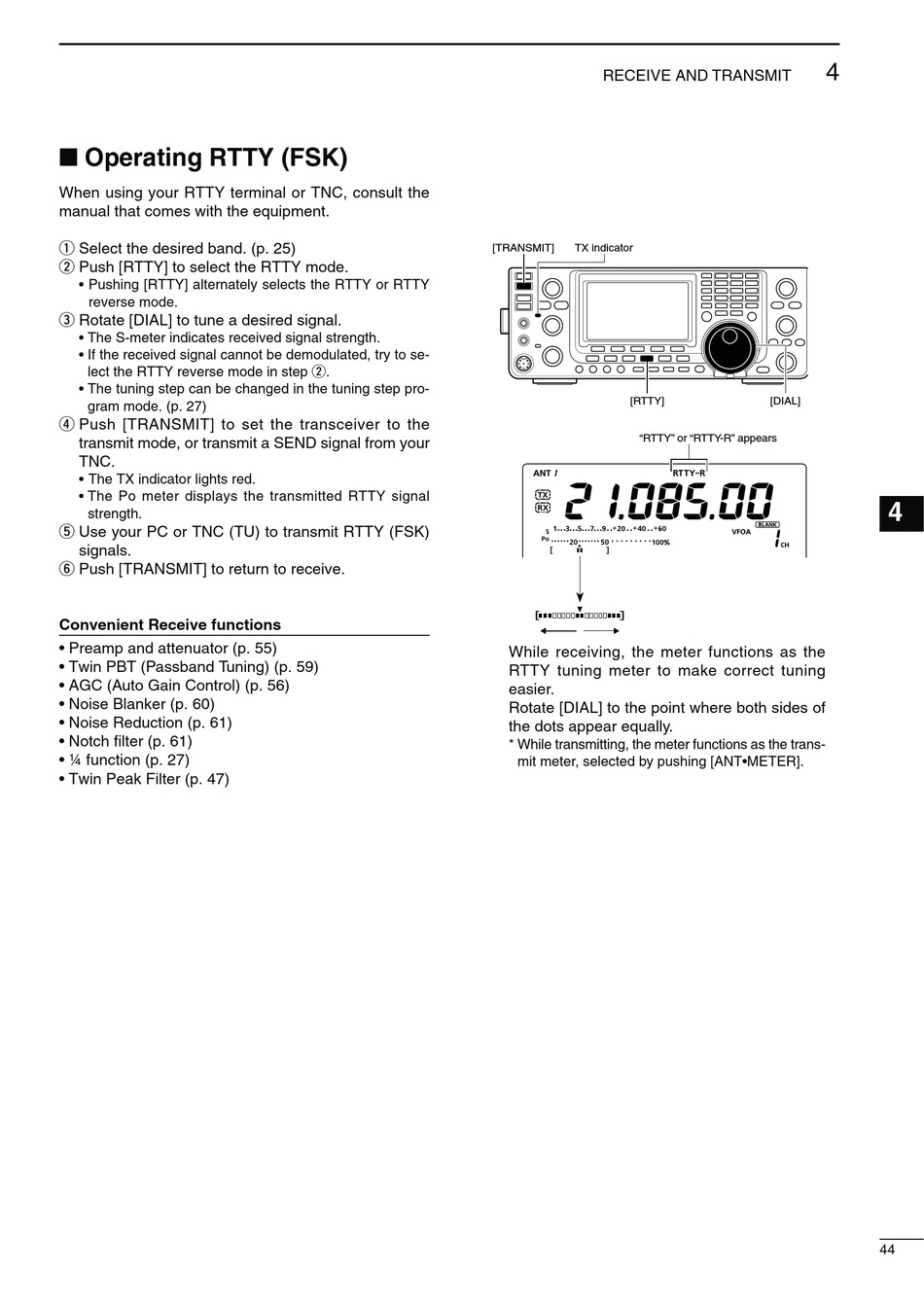

Icom IC-7410 Instruction Manual page 51

When using your RTTY terminal or TNC, consult the
manual that comes with the equipment.
q Select the desired band. (p. 25)
w Push [RTTY] to select the RTTY mode.
reverse mode.
e Rotate [DIAL] to tune a desired signal.
lect the RTTY reverse mode in step w.
gram mode. (p. 27)
r Push [TRANSMIT] to set the transceiver to the
transmit mode, or transmit a SEND signal from your
TNC.
strength.
t Use your PC or TNC (TU) to transmit RTTY (FSK)
signals.
y Push [TRANSMIT] to return to receive.
¼ function (p. 27)
Twin Peak Filter (p. 47)
[TRANSMIT] TX indicator
-
-
While receiving, the meter functions as the
RTTY tuning meter to make correct tuning
easier.
Rotate [DIAL] to the point where both sides of
the dots appear equally.
* While transmitting, the meter functions as the trans-
RECEIVE AND TRANSMIT
[RTTY] [DIAL]
"RTTY" or "RTTY-R" appears
