1

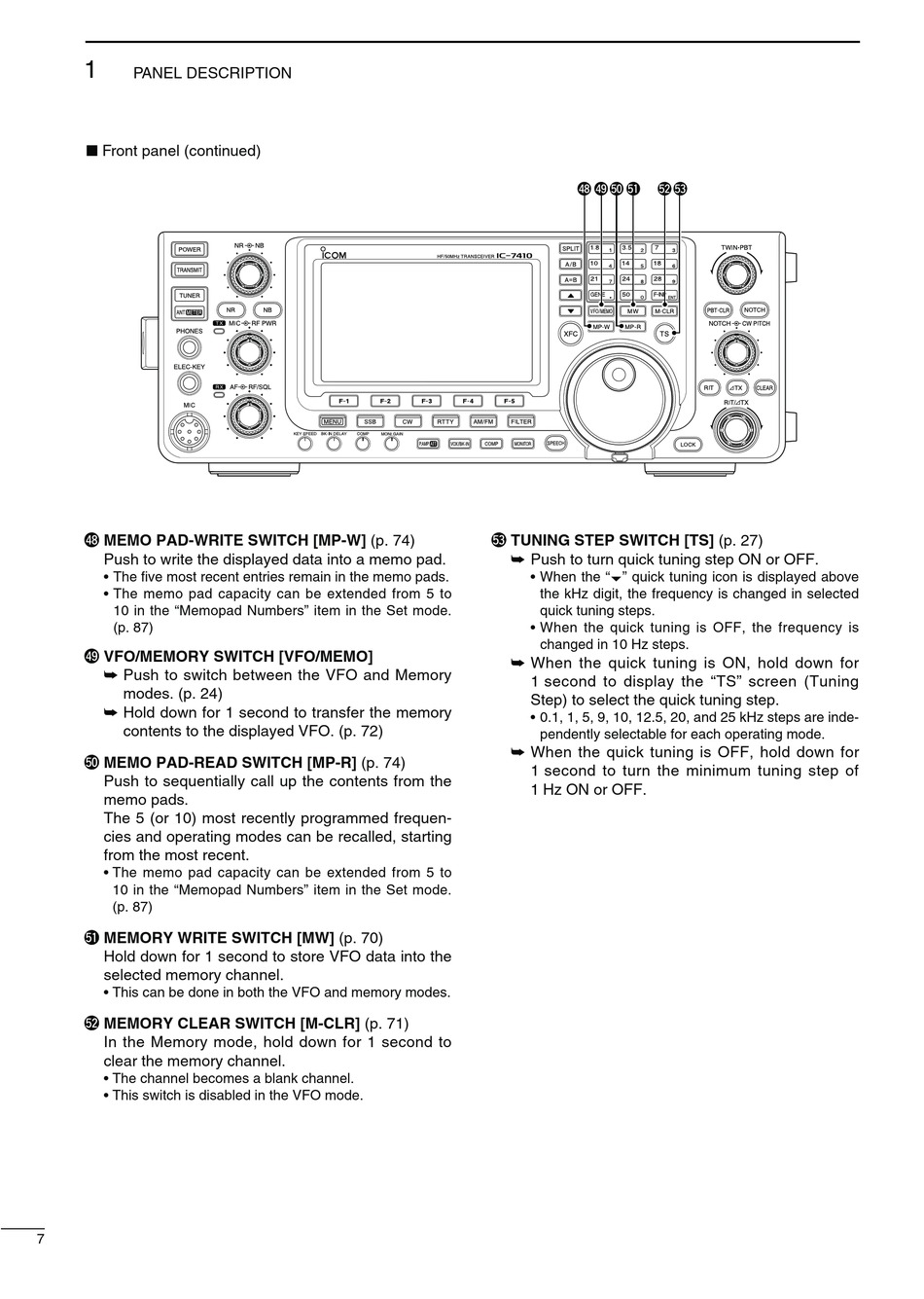

PANEL DESCRIPTION
Front panel (continued)
$8 MEMO PAD-WRITE SWITCH [MP-W] (p. 74)
Push to write the displayed data into a memo pad.
10 in the "Memopad Numbers" item in the Set mode.
(p. 87)
$9 VFO/MEMORY SWITCH [VFO/MEMO]
Push to switch between the VFO and Memory
modes. (p. 24)
Hold down for 1 second to transfer the memory
contents to the displayed VFO. (p. 72)
%0 MEMO PAD-READ SWITCH [MP-R] (p. 74)
Push to sequentially call up the contents from the
memo pads.
The 5 (or 10) most recently programmed frequen-
cies and operating modes can be recalled, starting
from the most recent.
10 in the "Memopad Numbers" item in the Set mode.
(p. 87)
%1 MEMORY WRITE SWITCH [MW] (p. 70)
Hold down for 1 second to store VFO data into the
selected memory channel.
%2 MEMORY CLEAR SWITCH [M-CLR] (p. 71)
In the Memory mode, hold down for 1 second to
clear the memory channel.
This switch is disabled in the VFO mode.
7
$8 $9 %0 %1 %2
%3 TUNING STEP SWITCH [TS] (p. 27)
Push to turn quick tuning step ON or OFF.
" quick tuning icon is displayed above
the kHz digit, the frequency is changed in selected
quick tuning steps.
changed in 10 Hz steps.
When the quick tuning is ON, hold down for
1 second to display the "TS" screen (Tuning
Step) to select the quick tuning step.
pendently selectable for each operating mode.
When the quick tuning is OFF, hold down for
1 second to turn the minimum tuning step of
1 Hz ON or OFF.
%3
-
