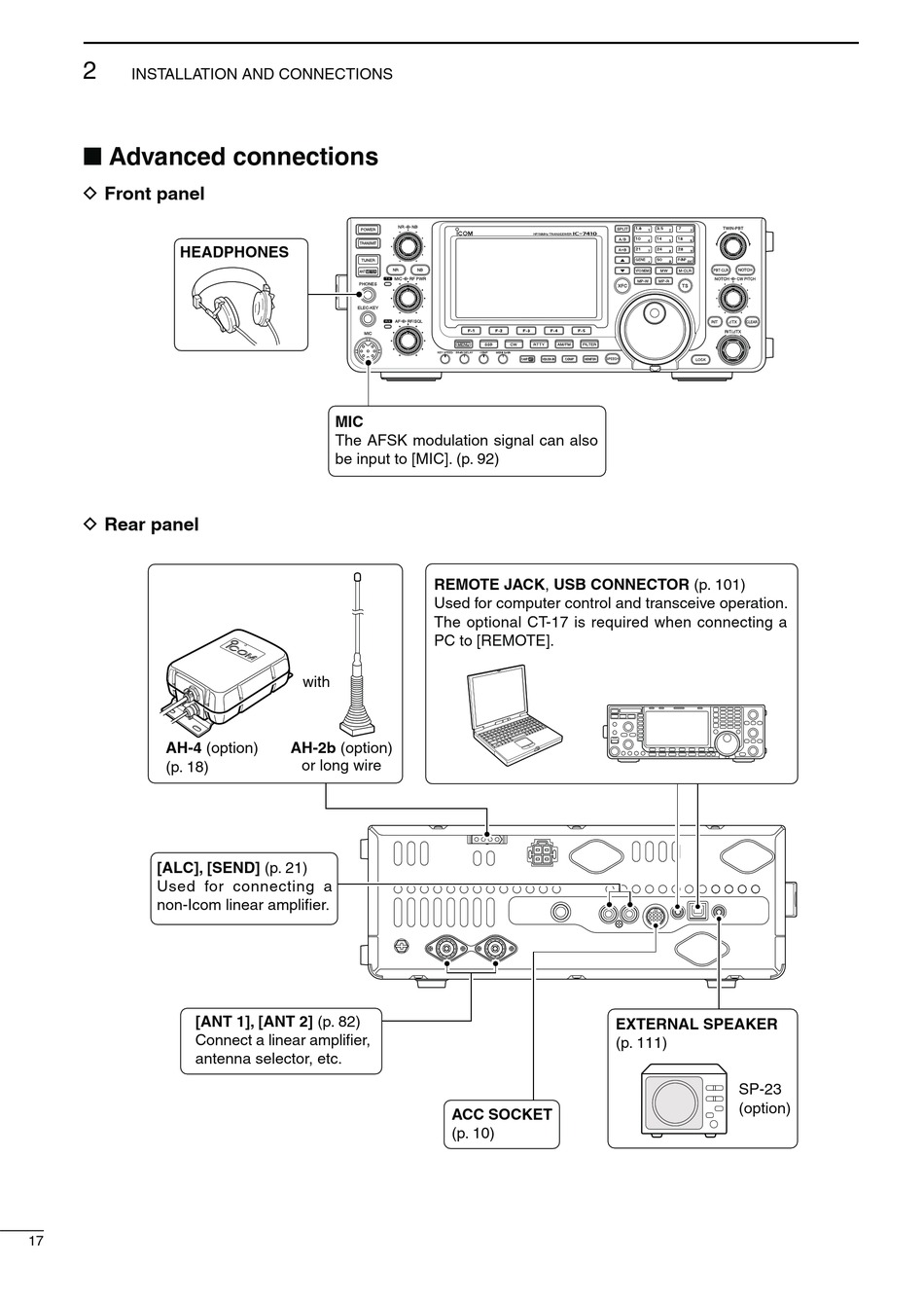

INSTALLATION AND CONNECTIONS

D Front panel

HEADPHONES

D Rear panel

AH-4 (option)
(p. 18)
[ALC], [SEND] (p. 21)
Used for connecting a
non-Icom linear amplifier.
[ANT 1], [ANT 2] (p. 82)
Connect a linear amplifier,
antenna selector, etc.
17
MIC
The AFSK modulation signal can also
be input to [MIC]. (p. 92)
REMOTE JACK,
Used for computer control and transceive operation.
The optional CT-17 is required when connecting a
PC to [REMOTE].
with
AH-2b (option)
or long wire
ACC SOCKET
(p. 10)
(p. 101)
EXTERNAL SPEAKER
(p. 111)
SP-23
(option)
