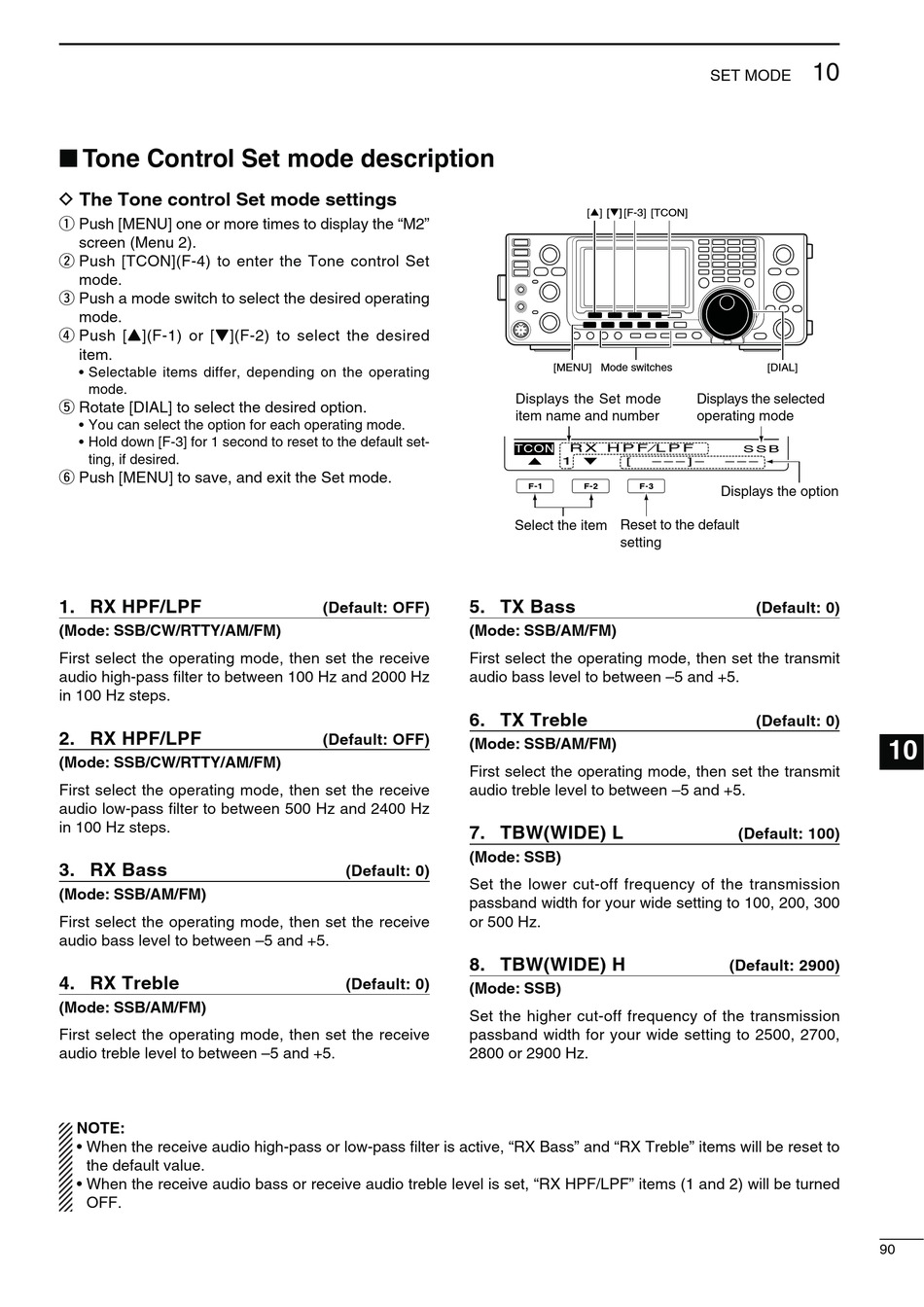

Icom IC-7410 Instruction Manual page 97

D
q Push [MENU] one or more times to display the "M2"
screen (Menu 2).
w Push [TCON](F-4) to enter the Tone control Set
mode.
e Push a mode switch to select the desired operating
mode.
r Push [Y](F-1) or [Z](F-2) to select the desired
item.
mode.
t Rotate [DIAL] to select the desired option.
ting, if desired.
y Push [MENU] to save, and exit the Set mode.
1. RX HPF/LPF
First select the operating mode, then set the receive
audio high-pass filter to between 100 Hz and 2000 Hz
in 100 Hz steps.
2. RX HPF/LPF
First select the operating mode, then set the receive
audio low-pass filter to between 500 Hz and 2400 Hz
in 100 Hz steps.
3.
First select the operating mode, then set the receive
audio bass level to between –5 and +5.
4. RX Treble
First select the operating mode, then set the receive
audio treble level to between –5 and +5.
the default value.
OFF.
[ ]
[MENU]
Displays the Set mode
item name and number
-
R X H P F ⁄ L P F
TCON
Ù Ú
1
Select the item Reset to the default
5.
First select the operating mode, then set the transmit
audio bass level to between –5 and +5.
6. TX Treble
First select the operating mode, then set the transmit
audio treble level to between –5 and +5.
7.
Set the lower cut-off frequency of the transmission
passband width for your wide setting to 100, 200, 300
or 500 Hz.
8.
Set the higher cut-off frequency of the transmission
passband width for your wide setting to 2500, 2700,
2800 or 2900 Hz.
SET MODE
[ ] [ ] [F-3] [TCON]
Mode switches [DIAL]
Displays the selected
operating mode
S S B
[ – – – ] – – – –
Displays the option
setting
10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
90
