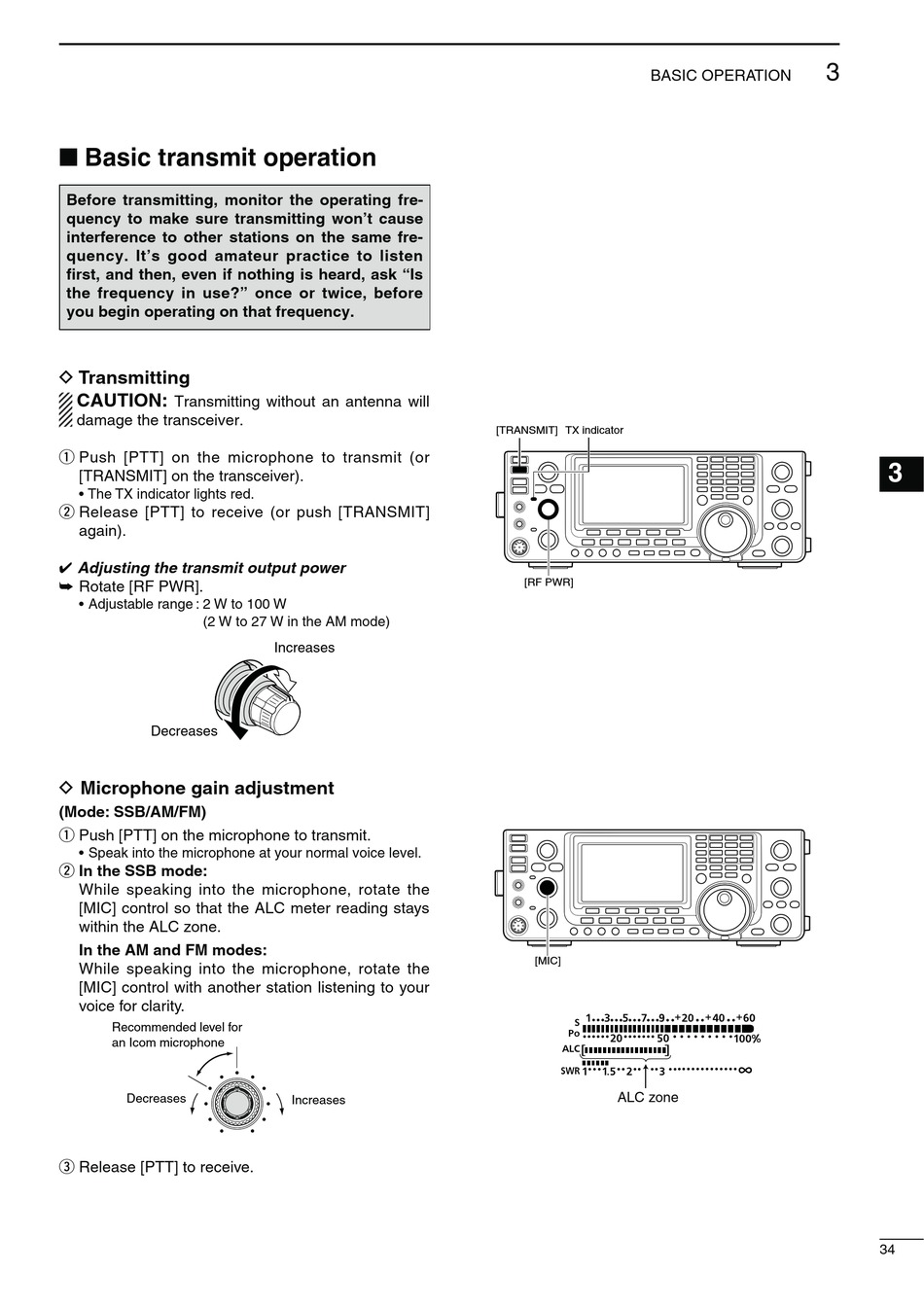

Icom IC-7410 Instruction Manual page 41

D
Transmitting without an antenna will
damage the transceiver.
q Push [PTT] on the microphone to transmit (or
[TRANSMIT] on the transceiver).
w Release [PTT] to receive (or push [TRANSMIT]
again).
Adjusting the transmit output power
Rotate [RF PWR].
(2 W to 27 W in the AM mode)
Decreases
D
q Push [PTT] on the microphone to transmit.
w
While speaking into the microphone, rotate the
[MIC] control so that the ALC meter reading stays
within the ALC zone.
While speaking into the microphone, rotate the
[MIC] control with another station listening to your
voice for clarity.
Recommended level for
an Icom microphone
Decreases
e Release [PTT] to receive.
-
-
Increases
Increases
BASIC OPERATION
[TRANSMIT] TX indicator
[RF PWR]
[MIC]
ALC zone
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
34
