Icom IC-7410 Instruction Manual page 16

1

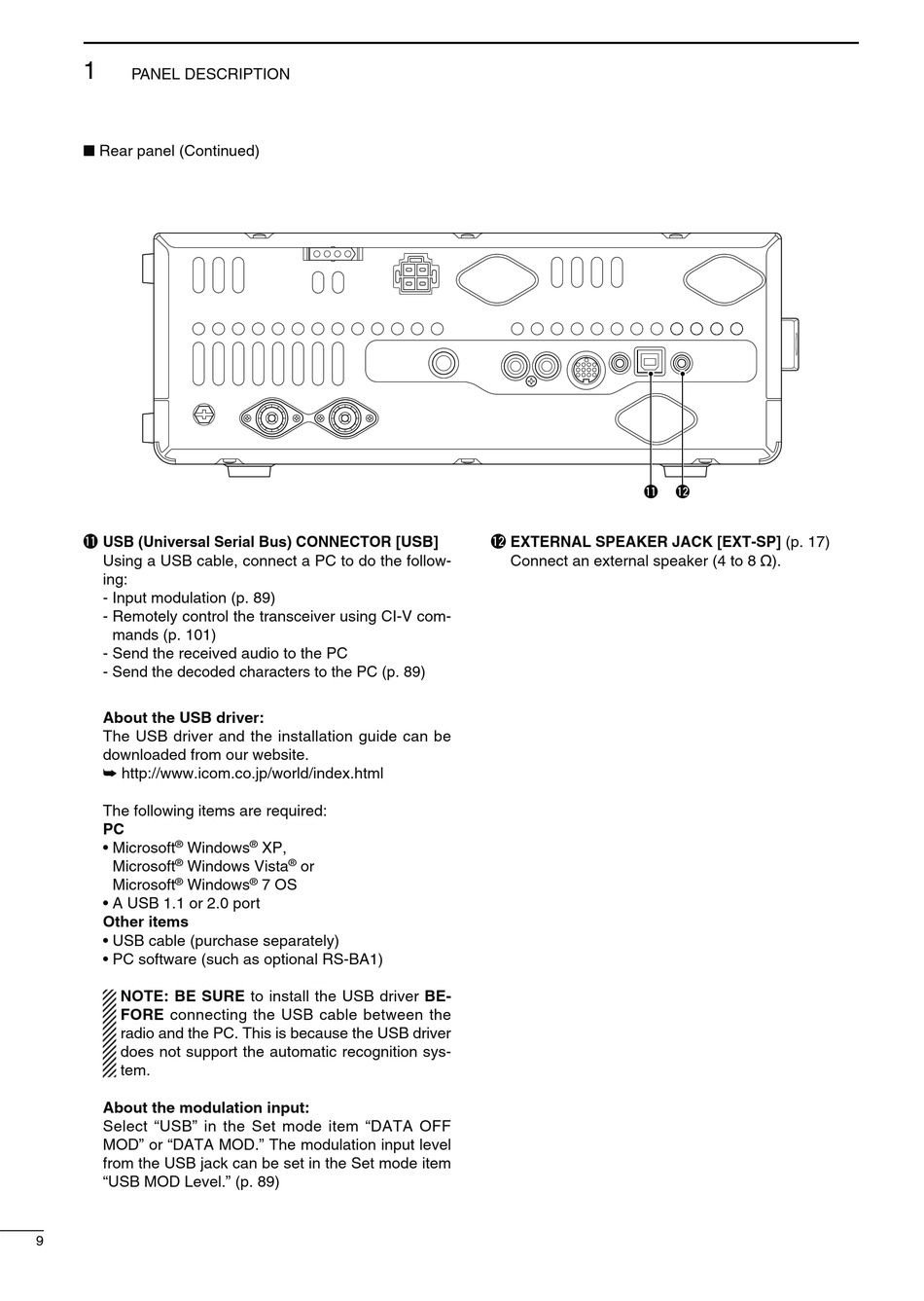

PANEL DESCRIPTION
Rear panel (Continued)
!1
Using a USB cable, connect a PC to do the follow-
ing:
- Input modulation (p. 89)
- Remotely control the transceiver using CI-V com-
mands (p. 101)
- Send the received audio to the PC
- Send the decoded characters to the PC (p. 89)
The USB driver and the installation guide can be
downloaded from our website.
http://www.icom.co.jp/world/index.html
The following items are required:
PC
®
Windows
®
Microsoft Windows Vista
®
Microsoft Windows
FORE connecting the USB cable between the
radio and the PC. This is because the USB driver
does not support the automatic recognition sys-
tem.
Select "USB" in the Set mode item "DATA OFF
MOD" or "DATA MOD." The modulation input level
from the USB jack can be set in the Set mode item
"USB MOD Level." (p. 89)
9
®
XP,
®
or
®
7 OS
to install the USB driver
!2 EXTERNAL SPEAKER JACK [EXT-SP] (p. 17)
Connect an external speaker (4 to 8 ø).
-
!1 !2
