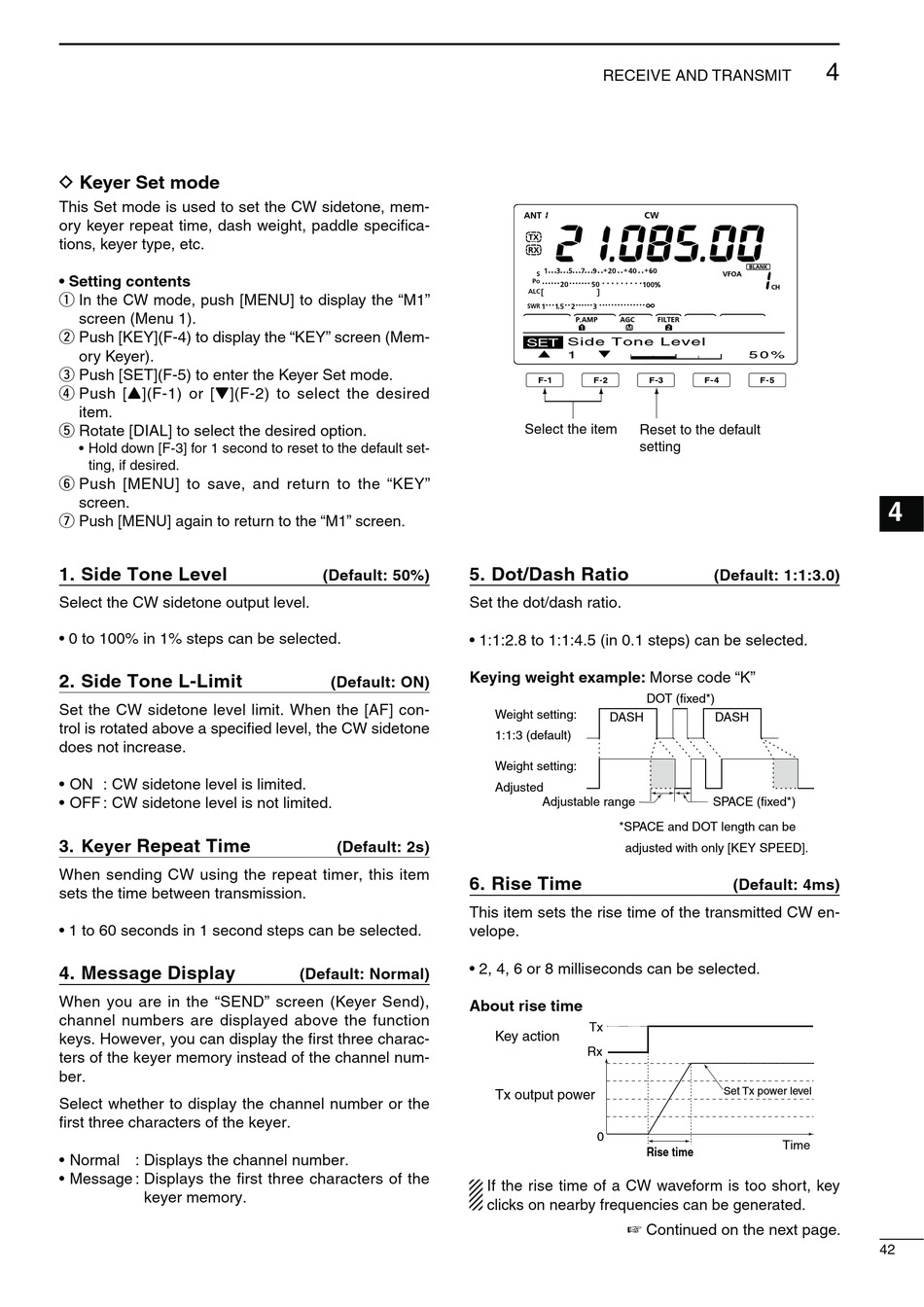

Icom IC-7410 Instruction Manual page 49

D
This Set mode is used to set the CW sidetone, mem-
ory keyer repeat time, dash weight, paddle specifica-
tions, keyer type, etc.
q In the CW mode, push [MENU] to display the "M1"
screen (Menu 1).
w Push [KEY](F-4) to display the "KEY" screen (Mem-
ory Keyer).
e Push [SET](F-5) to enter the Keyer Set mode.
r Push [Y](F-1) or [Z](F-2) to select the desired
item.
t Rotate [DIAL] to select the desired option.
ting, if desired.
y Push [MENU] to save, and return to the "KEY"
screen.
u Push [MENU] again to return to the "M1" screen.
1.
Select the CW sidetone output level.
2.
Set the CW sidetone level limit. When the [AF] con-
trol is rotated above a specified level, the CW sidetone
does not increase.
3. Keyer
When sending CW using the repeat timer, this item
sets the time between transmission.
4.
When you are in the "SEND" screen (Keyer Send),
channel numbers are displayed above the function
keys. However, you can display the first three charac-
ters of the keyer memory instead of the channel num-
ber.
Select whether to display the channel number or the
first three characters of the keyer.
keyer memory.
Side Tone Level
SET
1
Select the item
-
5.
Set the dot/dash ratio.
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
Adjustable range
6.
This item sets the rise time of the transmitted CW en-
velope.
Tx
Key action
Rx
Tx output power
0
If the rise time of a CW waveform is too short, key
clicks on nearby frequencies can be generated.
RECEIVE AND TRANSMIT
5 0 %
Reset to the default
setting
Morse code "K"
DOT (fixed*)
DASH DASH
SPACE (fixed*)
*SPACE and DOT length can be
adjusted with only [KEY SPEED].
Set Tx power level
Rise time
Continued on the next page.
