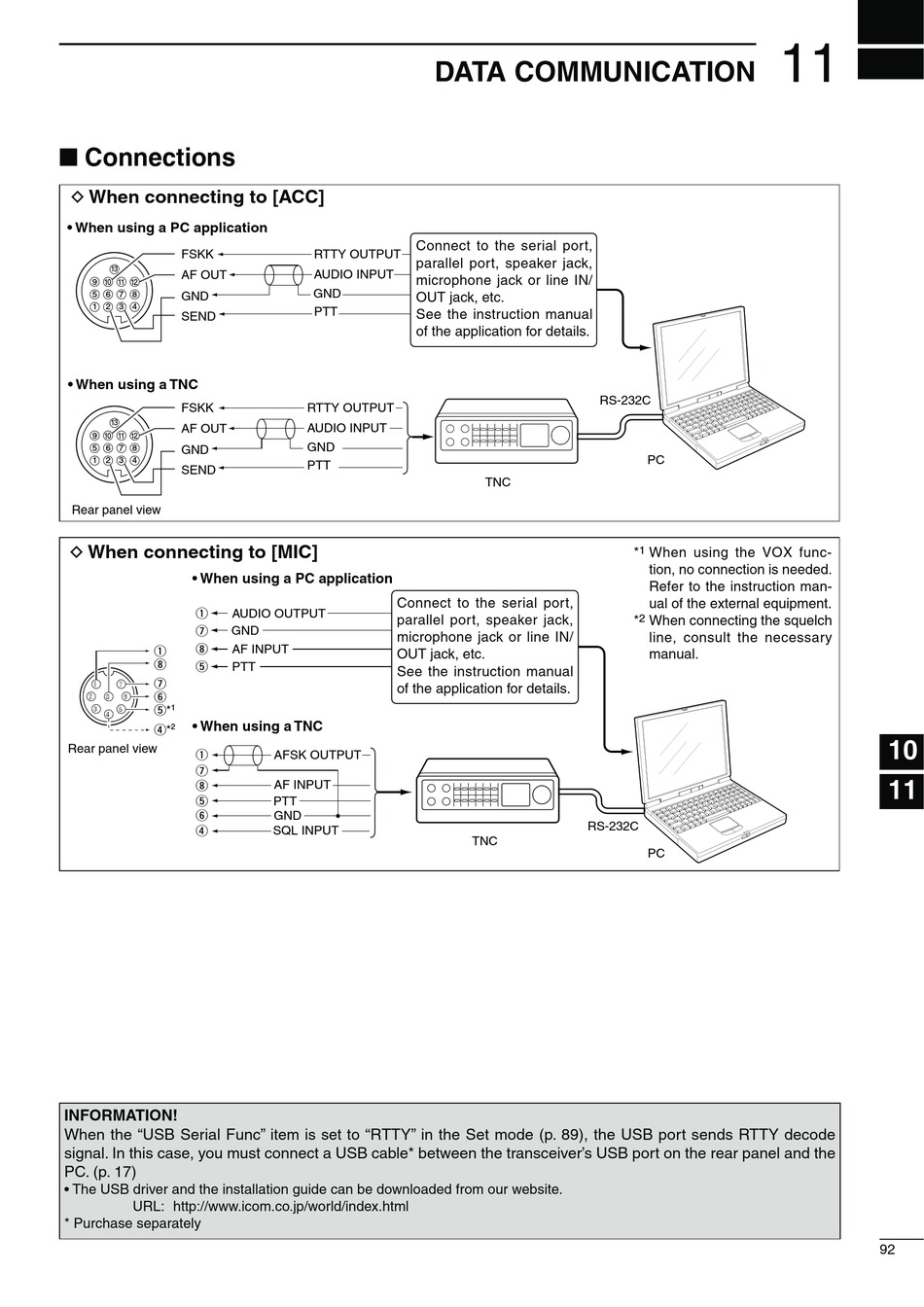

Data Communication - Icom IC-7410 Instruction Manual

D
FSKK
13
AF OUT
9 10 11 12
5 6 7 8
GND
1 2 3 4
SEND
TNC
FSKK
13
AF OUT
9 10 11 12
5 6 7 8 GND
1 2 3 4
SEND
Rear panel view
D
q
AUDIO OUTPUT
u
GND
i
q
AF INPUT
i
t
PTT
u
y
t*
1
r*
2
Rear panel view
q
u
i
t
y
r
INFORMATION!
When the "USB Serial Func" item is set to "RTTY" in the Set mode (p. 89), the USB port sends RTTY decode
signal. In this case, you must connect a USB cable* between the transceiver's USB port on the rear panel and the
PC. (p. 17)
