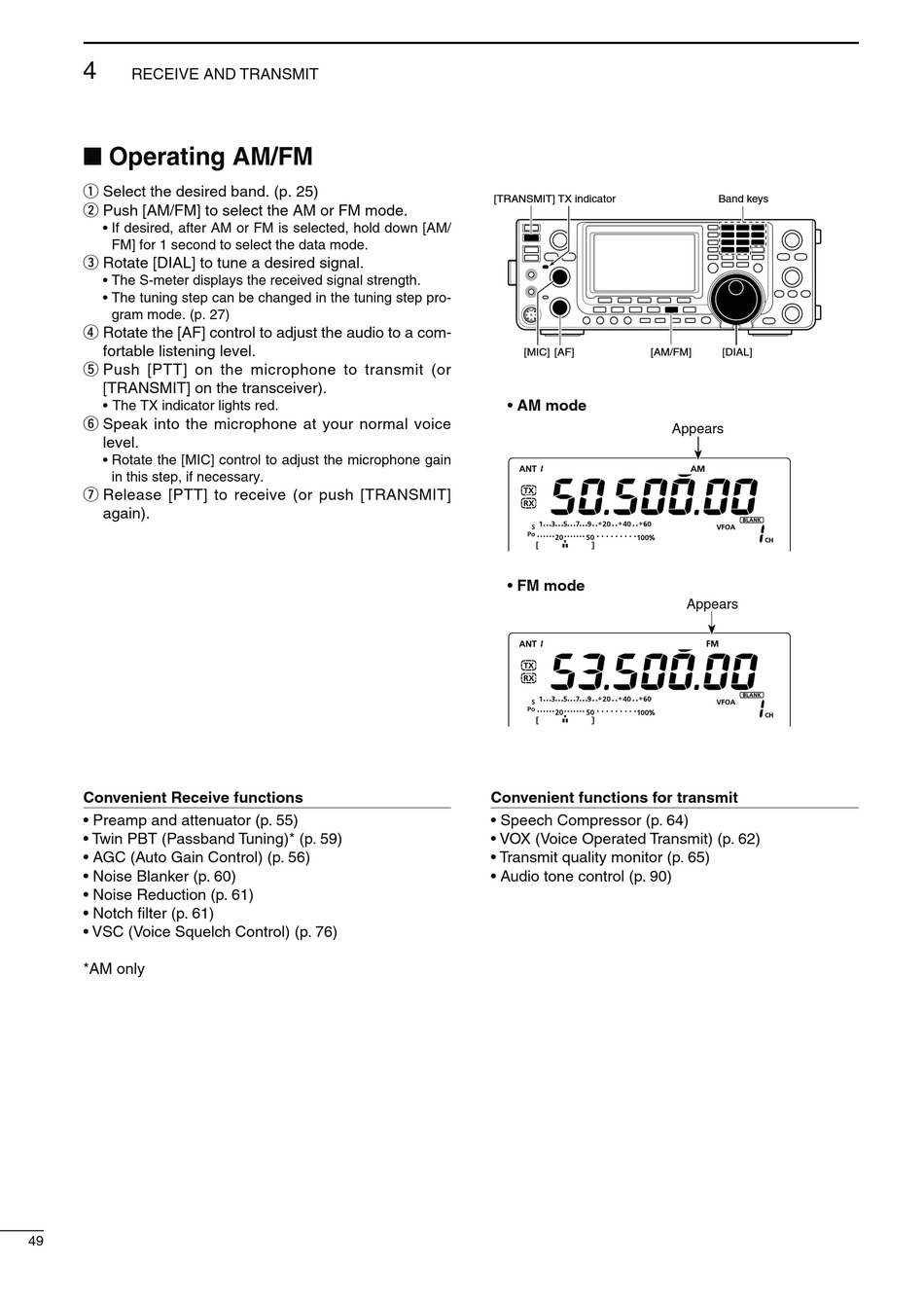

Icom IC-7410 Instruction Manual page 56

4
RECEIVE AND TRANSMIT
q Select the desired band. (p. 25)
w Push [AM/FM] to select the AM or FM mode.
FM] for 1 second to select the data mode.
e Rotate [DIAL] to tune a desired signal.
gram mode. (p. 27)
r Rotate the [AF] control to adjust the audio to a com-
fortable listening level.
t Push [PTT] on the microphone to transmit (or
[TRANSMIT] on the transceiver).
y Speak into the microphone at your normal voice
level.
in this step, if necessary.
u Release [PTT] to receive (or push [TRANSMIT]
again).
*AM only
49
[TRANSMIT] TX indicator
-
[MIC] [AF]
Band keys
[AM/FM] [DIAL]
Appears
Appears
