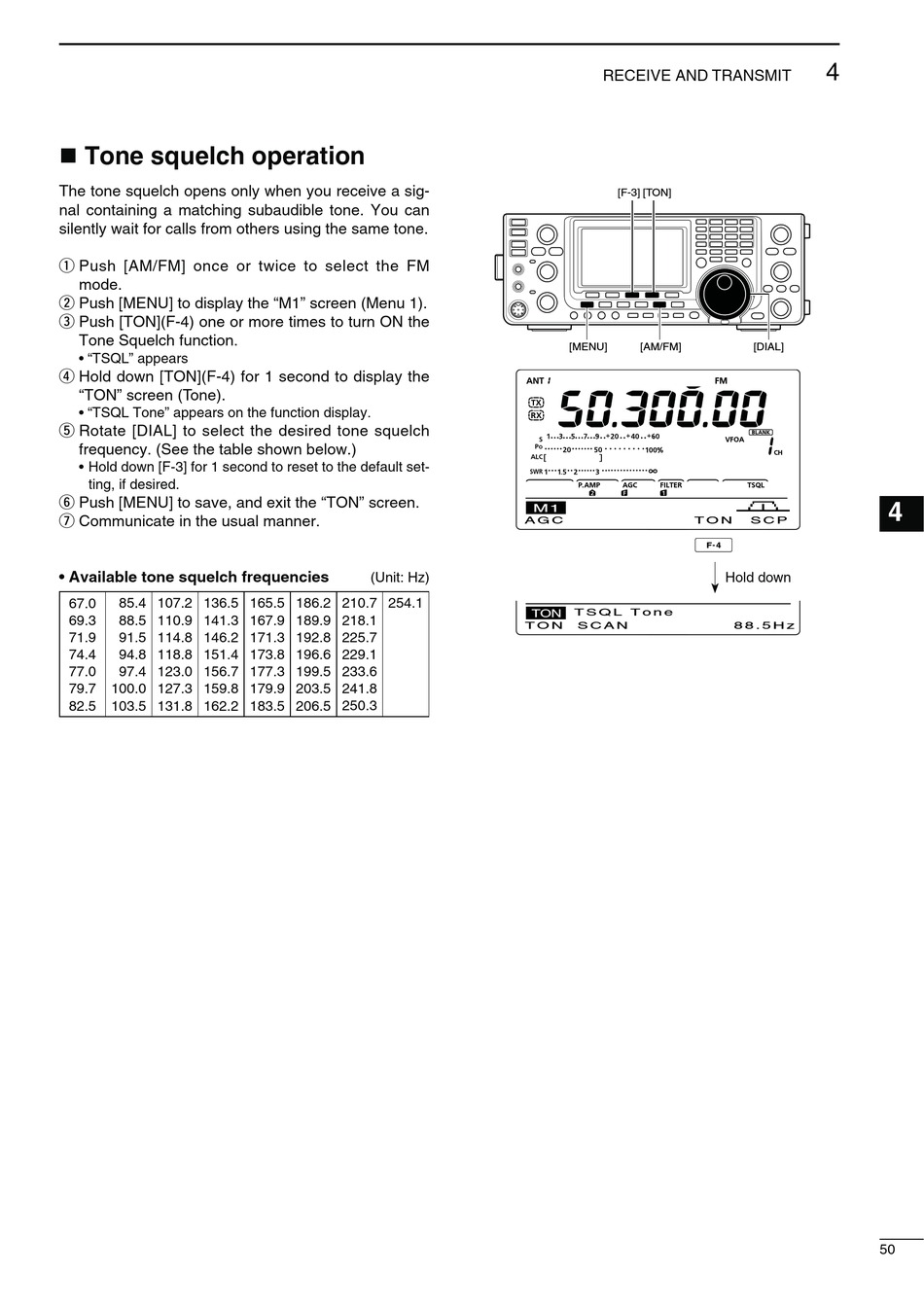

Icom IC-7410 Instruction Manual page 57

The tone squelch opens only when you receive a sig-
nal containing a matching subaudible tone. You can
silently wait for calls from others using the same tone.
q Push [AM/FM] once or twice to select the FM
mode.
w Push [MENU] to display the "M1" screen (Menu 1).
e Push [TON](F-4) one or more times to turn ON the
Tone Squelch function.
r Hold down [TON](F-4) for 1 second to display the
"TON" screen (Tone).
t Rotate [DIAL] to select the desired tone squelch
frequency. (See the table shown below.)
ting, if desired.
y Push [MENU] to save, and exit the "TON" screen.
u Communicate in the usual manner.
67.0 085.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
(Unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
[MENU]
-
M1
A G C
TON T S Q L T o n e
T O N S C A N
RECEIVE AND TRANSMIT
[F-3] [TON]
[AM/FM] [DIAL]
T O N S C P
Hold down
8 8 . 5 H z
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
50
