Functions For Transmit - Icom IC-7410 Instruction Manual

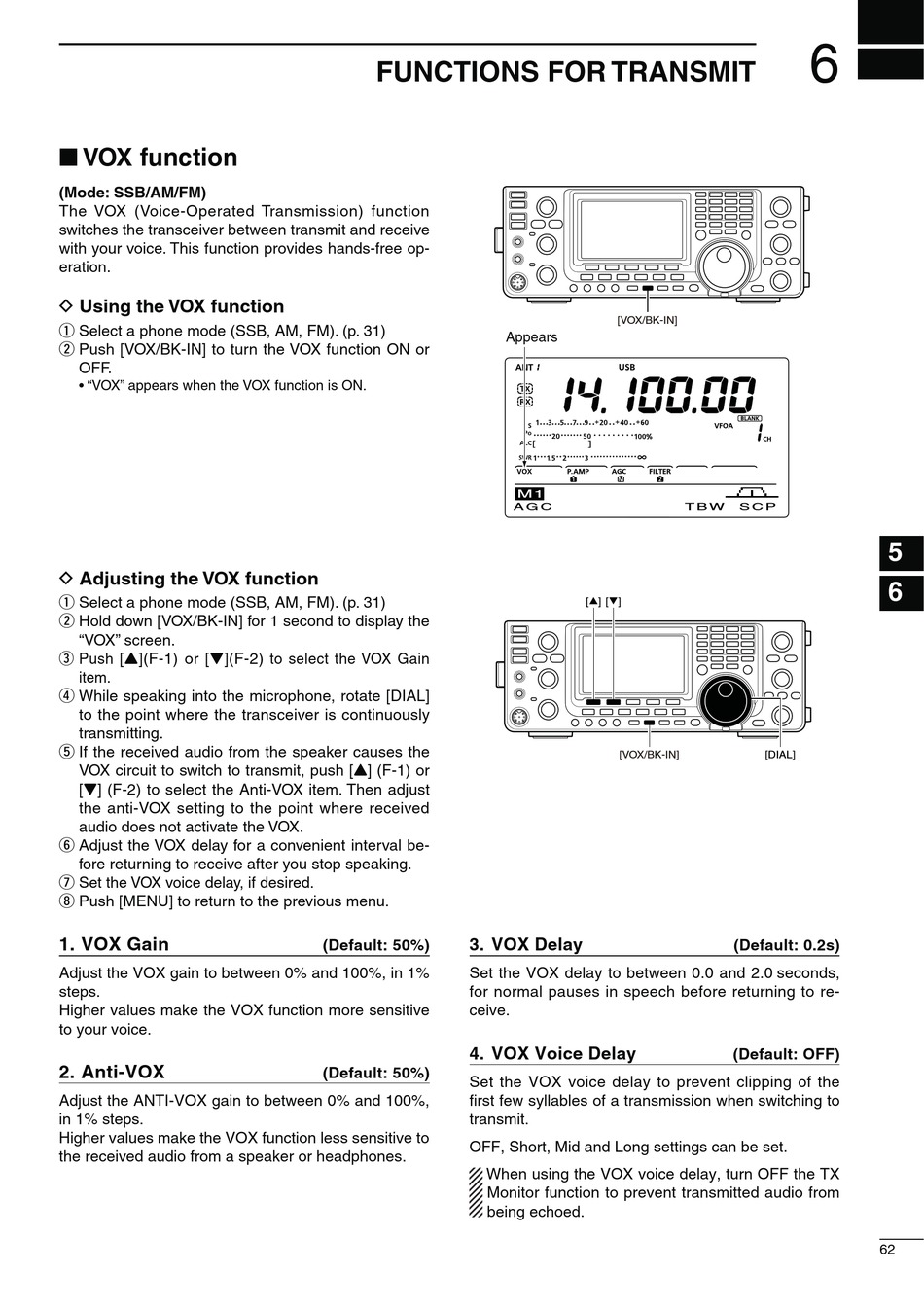

The VOX (Voice-Operated Transmission) function
switches the transceiver between transmit and receive
with your voice. This function provides hands-free op-
eration.
D
q Select a phone mode (SSB, AM, FM). (p. 31)
w Push [VOX/BK-IN] to turn the VOX function ON or
OFF.
D
q Select a phone mode (SSB, AM, FM). (p. 31)
w Hold down [VOX/BK-IN] for 1 second to display the
"VOX" screen.
e Push [Y](F-1) or [Z](F-2) to select the VOX Gain
item.
r While speaking into the microphone, rotate [DIAL]
to the point where the transceiver is continuously
transmitting.
t If the received audio from the speaker causes the
VOX circuit to switch to transmit, push [Y] (F-1) or
[Z] (F-2) to select the Anti-VOX item. Then adjust
the anti-VOX setting to the point where received
audio does not activate the VOX.
y Adjust the VOX delay for a convenient interval be-
fore returning to receive after you stop speaking.
u Set the VOX voice delay, if desired.
i Push [MENU] to return to the previous menu.
1. VOX Gain
steps.
Higher values make the VOX function more sensitive
to your voice.
2. Anti-VOX
Higher values make the VOX function less sensitive to
the received audio from a speaker or headphones.

FUNCTIONS FOR TRANSMIT

Appears
M1
A G C
3. VOX Delay
Set the VOX delay to between 0.0 and 2.0 seconds,
for normal pauses in speech before returning to re-
ceive.
4.
Set the VOX voice delay to prevent clipping of the
first few syllables of a transmission when switching to
transmit.
OFF, Short, Mid and Long settings can be set.
When using the VOX voice delay, turn OFF the TX
Monitor function to prevent transmitted audio from
being echoed.
[VOX/BK-IN]
T B W S C P
[ ] [ ]
[VOX/BK-IN]
6
1
2
3
4
5
6
7
8
9
10
[DIAL]
11
12
13
14
15
16
17
18
19
20
21
62
