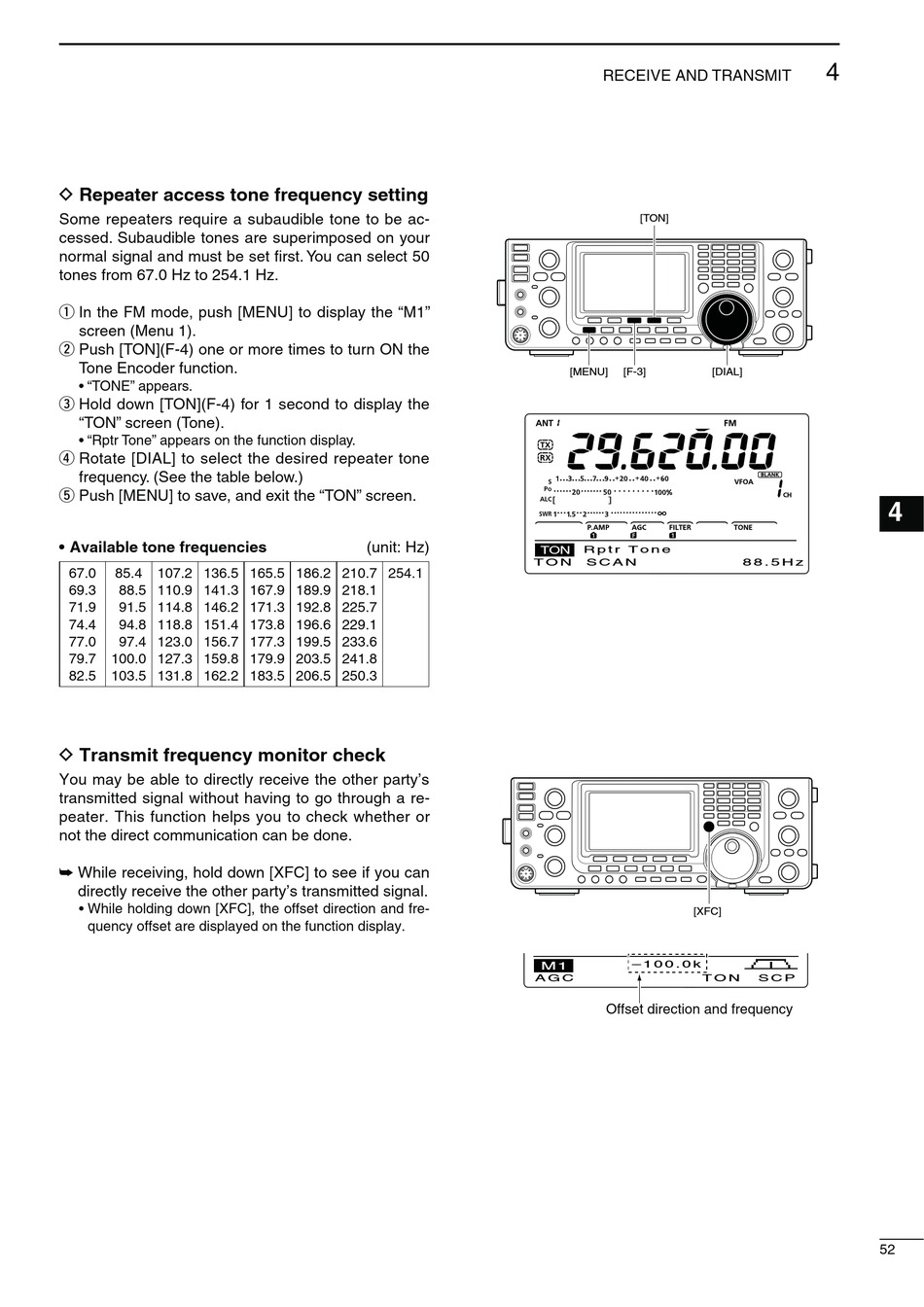

Icom IC-7410 Instruction Manual page 59

D
Some repeaters require a subaudible tone to be ac-
cessed. Subaudible tones are superimposed on your
normal signal and must be set first. You can select 50
tones from 67.0 Hz to 254.1 Hz.
q In the FM mode, push [MENU] to display the "M1"
screen (Menu 1).
w Push [TON](F-4) one or more times to turn ON the
Tone Encoder function.
e Hold down [TON](F-4) for 1 second to display the
"TON" screen (Tone).
r Rotate [DIAL] to select the desired repeater tone
frequency. (See the table below.)
t Push [MENU] to save, and exit the "TON" screen.
67.0 85.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
D
You may be able to directly receive the other party's
transmitted signal without having to go through a re-
peater. This function helps you to check whether or
not the direct communication can be done.
While receiving, hold down [XFC] to see if you can
directly receive the other party's transmitted signal.
quency offset are displayed on the function display.
(unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
[MENU]
R p t r T o n e
TON
T O N S C A N
-
M1
A G C
RECEIVE AND TRANSMIT
[TON]
[F-3] [DIAL]
8 8 . 5 H z
[XFC]
– 1 0 0 . 0 k
T O N S C P
Offset direction and frequency
