Panel Description; Front Panel - Icom IC-7410 Instruction Manual

1

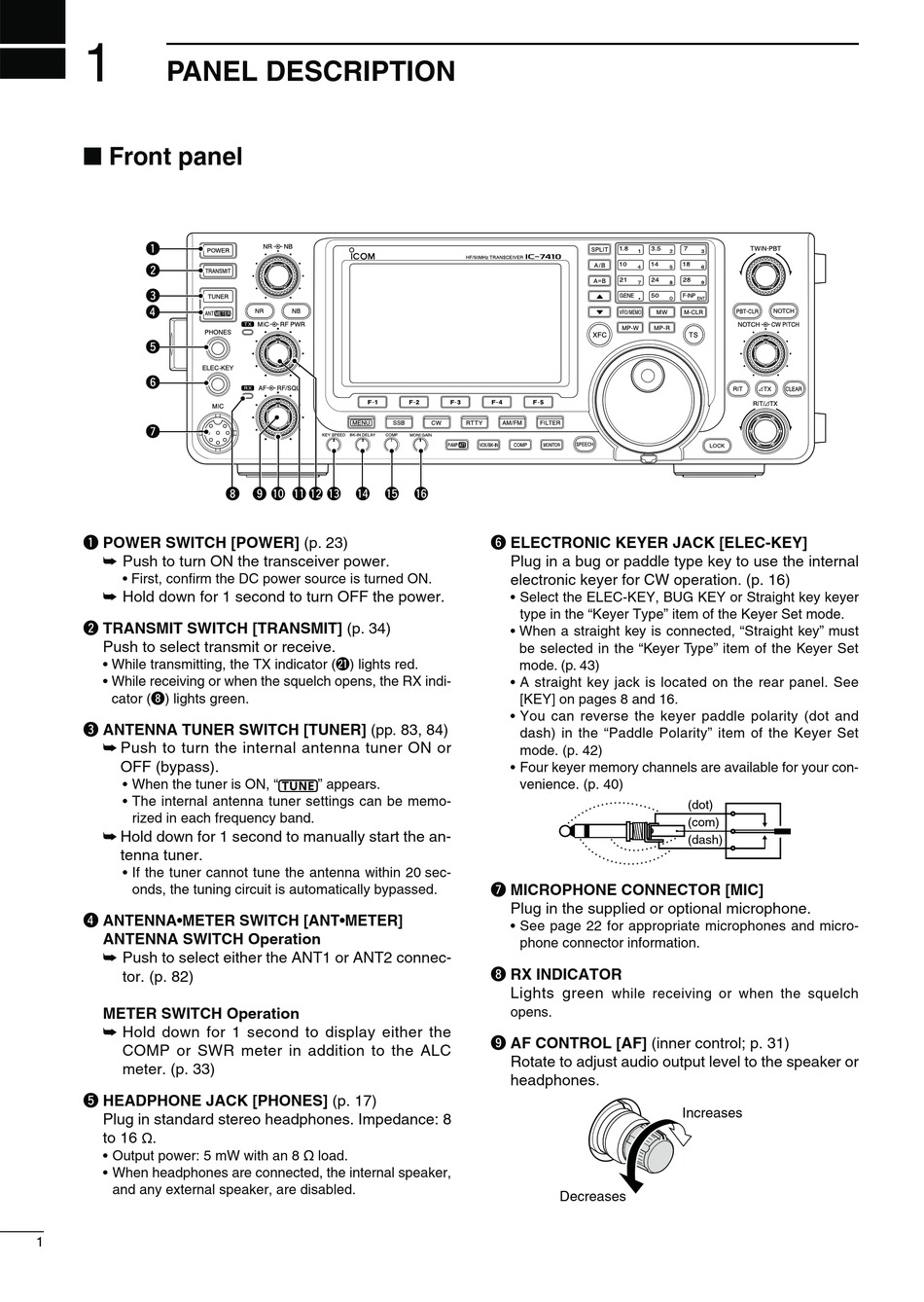

PANEL DESCRIPTION

Front panel

q
w
e
r
t
y
u
q POWER SWITCH [POWER] (p. 23)
Push to turn ON the transceiver power.
Hold down for 1 second to turn OFF the power.
w TRANSMIT SWITCH [TRANSMIT] (p. 34)
Push to select transmit or receive.
cator (i) lights green.
e ANTENNA TUNER SWITCH [TUNER] (pp. 83, 84)
Push to turn the internal antenna tuner ON or
OFF (bypass).
rized in each frequency band.
Hold down for 1 second to manually start the an-
tenna tuner.
onds, the tuning circuit is automatically bypassed.
r
ANTENNA SWITCH Operation
Push to select either the ANT1 or ANT2 connec-
tor. (p. 82)
METER SWITCH Operation
Hold down for 1 second to display either the
COMP or SWR meter in addition to the ALC
meter. (p. 33)
t HEADPHONE JACK [PHONES] (p. 17)
Plug in standard stereo headphones. Impedance: 8
ø
to 16 .
and any external speaker, are disabled.
1
i o !0 !1 !2 !3 !4 !5
@1 ) lights red.
" appears.
ø load.
!6
y ELECTRONIC KEYER JACK [ELEC-KEY]
Plug in a bug or paddle type key to use the internal
electronic keyer for CW operation. (p. 16)
type in the "Keyer Type" item of the Keyer Set mode.
be selected in the "Keyer Type" item of the Keyer Set
mode. (p. 43)
-
[KEY] on pages 8 and 16.
dash) in the "Paddle Polarity" item of the Keyer Set
mode. (p. 42)
venience. (p. 40)
-
-
u MICROPHONE CONNECTOR [MIC]
Plug in the supplied or optional microphone.
phone connector information.
i RX INDICATOR
Lights green
opens.
o AF CONTROL [AF] (inner control; p. 31)
Rotate to adjust audio output level to the speaker or
headphones.
Decreases
(dot)
(com)
(dash)
while receiving or when the squelch
Increases
-
-
