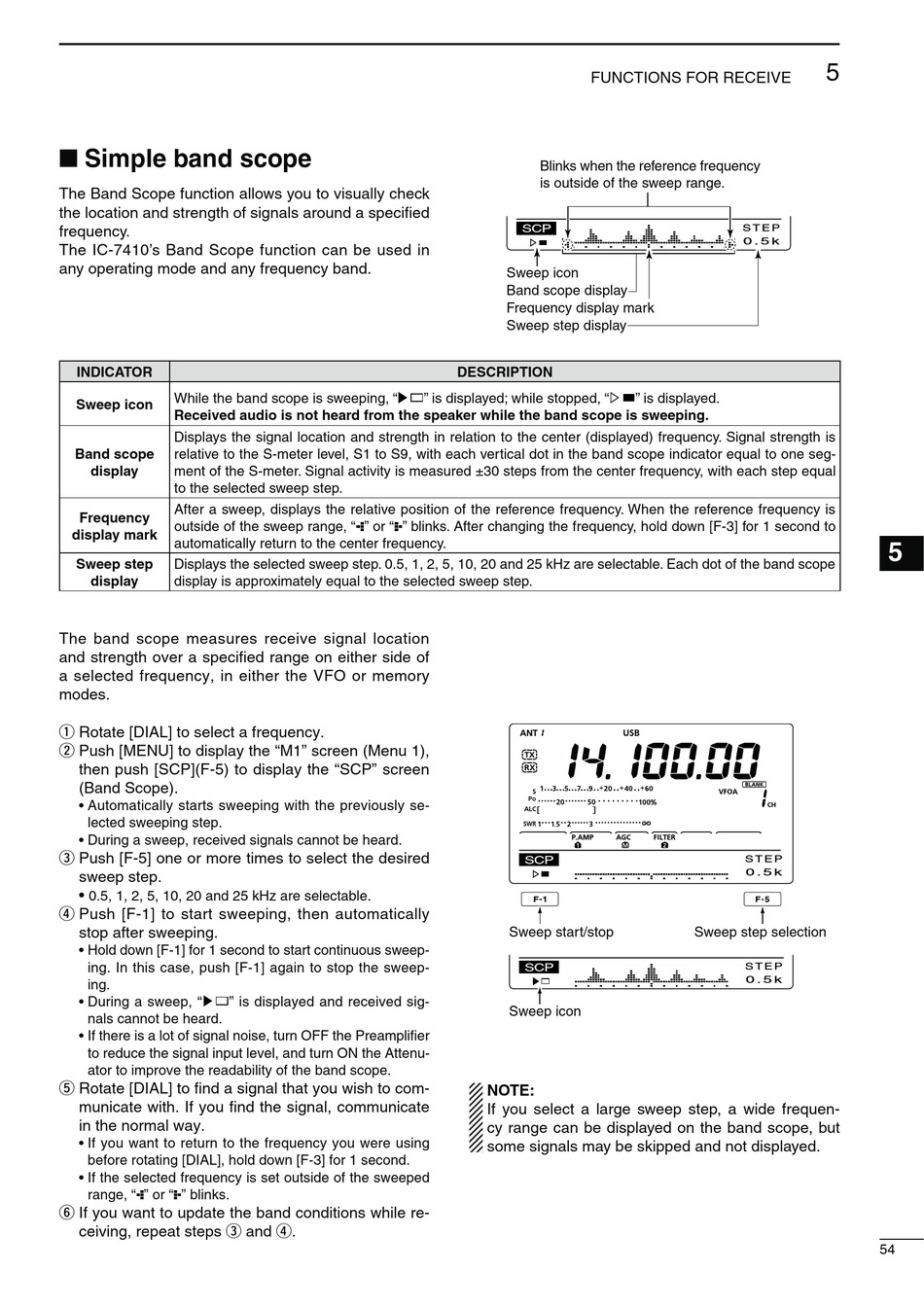

The Band Scope function allows you to visually check
the location and strength of signals around a specified
frequency.
The IC-7410's Band Scope function can be used in
any operating mode and any frequency band.
INDICATOR
While the band scope is sweeping, "
Displays the signal location and strength in relation to the center (displayed) frequency. Signal strength is
relative to the S-meter level, S1 to S9, with each vertical dot in the band scope indicator equal to one seg-
ment of the S-meter. Signal activity is measured ±30 steps from the center frequency, with each step equal
to the selected sweep step.
After a sweep, displays the relative position of the reference frequency. When the reference frequency is
outside of the sweep range, " " or " " blinks. After changing the frequency, hold down [F-3] for 1 second to
automatically return to the center frequency.
Displays the selected sweep step. 0.5, 1, 2, 5, 10, 20 and 25 kHz are selectable. Each dot of the band scope
display is approximately equal to the selected sweep step.
The band scope measures receive signal location
and strength over a specified range on either side of
a selected frequency, in either the VFO or memory
modes.
q Rotate [DIAL] to select a frequency.
w Push [MENU] to display the "M1" screen (Menu 1),
then push [SCP](F-5) to display the "SCP" screen
(Band Scope).
lected sweeping step.
e Push [F-5] one or more times to select the desired
sweep step.
0.5, 1, 2, 5, 10, 20 and 25 kHz are selectable.
r Push [F-1] to start sweeping, then automatically
stop after sweeping.
ing. In this case, push [F-1] again to stop the sweep-
ing.
" is displayed and received sig-
nals cannot be heard.
to reduce the signal input level, and turn ON the Attenu-
ator to improve the readability of the band scope.
t Rotate [DIAL] to find a signal that you wish to com-
municate with. If you find the signal, communicate
in the normal way.
before rotating [DIAL], hold down [F-3] for 1 second.
range, " " or " " blinks.
y If you want to update the band conditions while re-
ceiving, repeat steps e and r.
FUNCTIONS FOR RECEIVE
Blinks when the reference frequency
is outside of the sweep range.
SCP
Sweep icon
Band scope display
Frequency display mark
Sweep step display
DESCRIPTION
" is displayed; while stopped, "
-
SCP
Sweep start/stop
-
SCP
Sweep icon
If you select a large sweep step, a wide frequen-
cy range can be displayed on the band scope, but
some signals may be skipped and not displayed.
S T E P
0 . 5 k
" is displayed.
S T E P
0 . 5 k
Sweep step selection
S T E P
